Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of continuous bright annealing furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized continuous bright annealing furnace made in China here from our factory. For price consultation, contact us.
Product Introduction

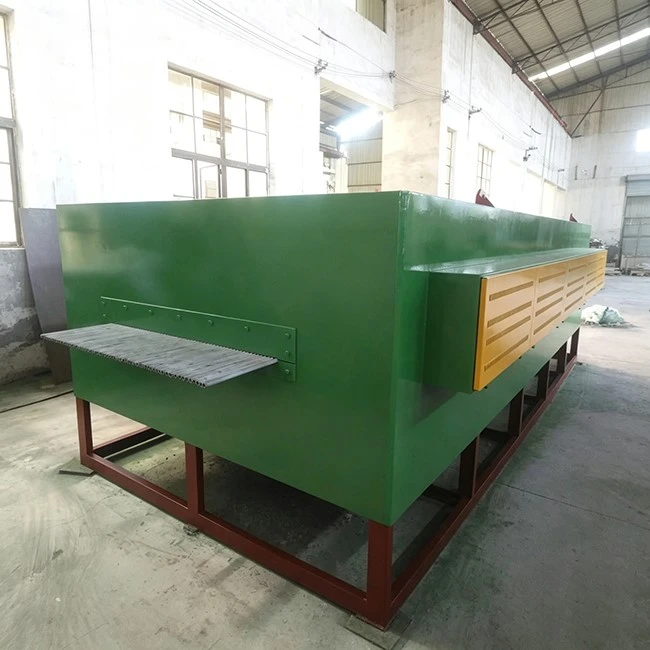

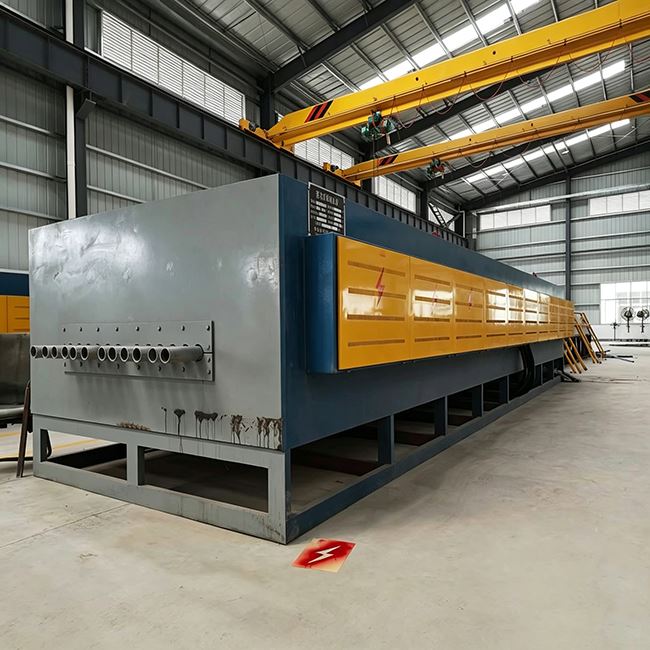

This continuous bright annealing furnace is used for the inline annealing of metal strip, wire, tube and small precision components. The furnace uses a straight-through configuration, enabling continuous feeding, heating, atmosphere protection and discharging without frequent shutdowns during production runs.
All thermal processing is completed inside a fully sealed chamber under controlled protective gas conditions. Surface quality after annealing is governed by gas composition, dew point stability, chamber tightness, material grade and operating line speed. Core operating parameters, including running speed, processing temperature and atmosphere settings, can be tailored to match diverse metal materials and production conditions.
Working Principle
Workpieces are transported steadily through the sealed furnace via a dedicated conveying system. Before heating starts, the chamber is purged with protective gas to displace residual air and sustain a low-oxygen internal environment. Materials pass sequentially through preheating, constant-temperature annealing and controlled cooling zones at a steady conveying speed.
Multi-zone segmented temperature control achieves graded heating, facilitating uniform microstructure recrystallization and effective stress relief. Workpieces cool gradually under protective atmosphere before exiting the continuous bright annealing furnace. The inline continuous operation mode is suitable for long-term production of standardized metal parts.
Features
01.
Workpieces continuously pass through preheating, heating, heat preservation, slow cooling, and cooling processes, without length limitations.
01
02.
The transmission uses a roller-type synchronous drive with frequency conversion speed regulation, ensuring smooth and reliable operation.
02
03.
A protective atmosphere and a powerful hot atmosphere circulation system ensure uniform temperature and a highly polished inner and outer surface.
03
04.
A uniquely designed cooling zone guarantees uniform cooling of the workpiece.
04
05.
The processed products have a bright inner and outer surface, resulting in high product quality and high productivity.
05
Applications
This continuous bright annealing furnace serves core processing industries including stainless steel fabrication, copper and aluminum alloy processing, precision wire and strip manufacturing, and hardware fitting production.
It supports continuous recrystallization annealing and stress relief treatment for stainless steel, carbon steel, copper alloy and aluminum alloy workpieces such as thin strips, fine wires, small-diameter pipes and stamped precision parts. The equipment provides stable, standardized continuous heat treatment solutions for modern metal forming and processing production lines.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
