Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of bell type bright annealing furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized bell type bright annealing furnace made in China here from our factory. For price consultation, contact us.
Product Introduction

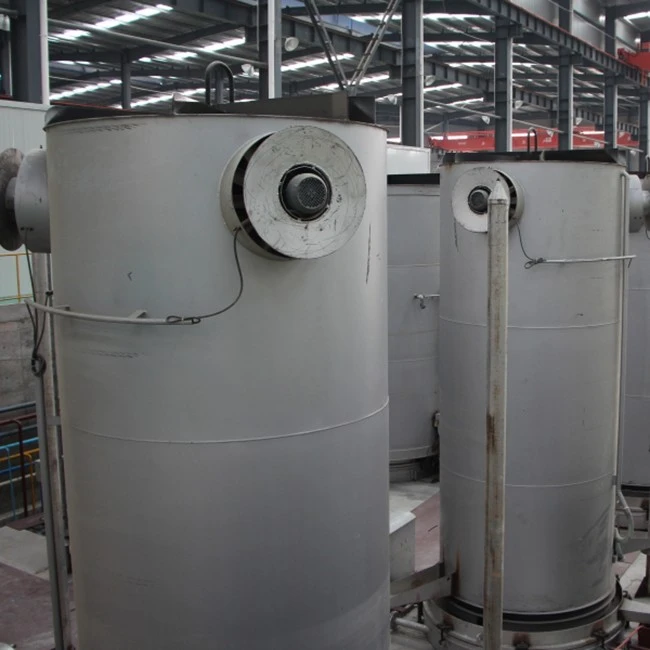

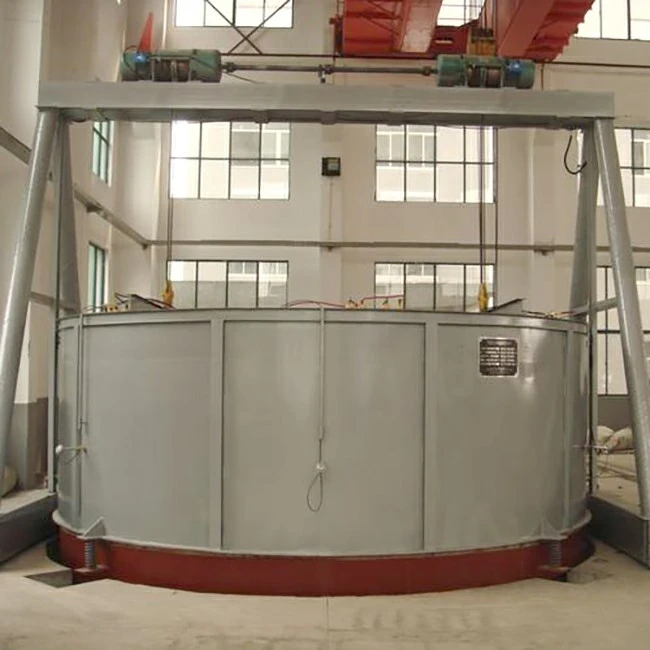

The Bell Type Bright Annealing Furnace is a controlled-atmosphere heat treatment unit built for batch bright annealing of metal coils, strips, wires and sheets. The bell-type structure consists of a removable heating cover, protective inner cover and fixed furnace base. Workpieces are heated and cooled under a controlled atmosphere throughout the process.
During annealing, the protective atmosphere is controlled to limit oxidation, discoloration and surface contamination, helping maintain the required surface condition. Depending on the material and process conditions, subsequent pickling requirements can be reduced or eliminated.
The Bell Type Bright Annealing Furnace can be customized in terms of furnace diameter, effective heating height, heating power, atmosphere circulation, cooling configuration, batch capacity and control system to match different material grades, coil dimensions and production specifications.
Main Components
Bell-type Heating Cover: Removable heating structure containing the heating elements and covering the protective inner cover during the heating cycle.
Protective Inner Cover: Sealed inner shell isolates workpieces from the external environment and maintains stable internal atmosphere conditions.
Furnace Base & Workpiece Support: Fixed support structure for stacking coils, strips and other batch-loaded workpieces, providing stable load support during heating and cooling.
Electric Resistance Heating Elements: Arranged uniformly inside the heating cover to provide consistent thermal output for batch annealing cycles.
Refractory and Thermal Insulation Lining: Internal insulation structure reduces heat dissipation and sustains stable chamber temperature during long soaking periods.
Protective Gas Circulation System: Equipped with circulating equipment to drive uniform gas flow and balance temperature and atmosphere distribution inside the inner cover.
Gas Inlet, Exhaust and Sealing System: Manages gas purging, air displacement and chamber sealing to maintain the required protective atmosphere.
Circulation Fan: Enhances internal gas convection, improving heat transfer efficiency and temperature consistency across stacked workpieces.
Multi-point Thermocouple System: Arranged at multiple positions to monitor real-time temperature changes and support closed-loop temperature regulation.
PID Temperature Controller & Electrical Cabinet: Executes programmed heating, soaking and cooling sequences and records full-process operating data.
Cooling System: Matches staged cooling logic for post-soaking temperature reduction under protective atmosphere.
Features
Controlled Atmosphere Processing:
All heating and cooling steps are completed inside a sealed chamber under a controlled protective atmosphere, limiting oxidation and surface discoloration for bright annealing results.
01
Bell-type Batch Structure:
Modular cover-and-base layout supports independent batch processing and flexible production scheduling for different metal materials.
02
Multi-point Temperature Monitoring and Control:
Distributed temperature sensing and zoned power adjustment reduce temperature deviation within the batch range.
03
Forced Protective Gas Circulation:
Active gas convection improves heat transfer and promotes a more uniform atmosphere around the workpieces.
04
Separate Heating and Cooling Stages:
The heating cover can be transferred to another furnace base while the previous batch continues cooling, allowing the next heating cycle to start without waiting for the cooling cycle to finish.
05
Applications
This Bell Type Bright Annealing Furnace is widely applied in stainless steel processing, copper and aluminum alloy production, metal strip and wire manufacturing, bearing processing and precision metal heat treatment industries.
1. Bright annealing of special steel, precision alloy strips, and wires.
2. Annealing of special steel castings and forgings.
3. Annealing of finished silicon steel sheets.
4. Sintering of metal and non-metal powder pressed parts, etc.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
