Product Introduction
This aluminum alloy quenching furnace is a batch processing thermal unit. It supports standard solution treatment and quenching operations for aluminum materials. Common processing objects cover aluminum castings, extruded profiles, aluminum plates and automotive aluminum structural parts, all requiring programmed heating followed by rapid water cooling.
The equipment integrates resistance heating modules, forced hot air circulation components and water quenching structures as one complete system. In solution treatment stages, workpieces stay inside the furnace chamber for fixed-temperature heating and timed holding. This processing state allows alloying elements to dissolve into the aluminum solid solution. Workpieces are then moved out and sent to the quenching tank for subsequent cooling procedures.
Furnace chamber structure and workpiece loading systems are tailored to actual production conditions. Design variables include workpiece outer dimensions, material grades, single batch weight and full treatment cycle duration. Multiple chamber sizes, heating power matches, custom loading frames and transfer layouts are available. Configurations fit laboratory tests, pilot trials and formal industrial batch runs.
Working Principle
Operators place workpieces on dedicated loading frames and push the assembly into the sealed furnace chamber. Secure the furnace door before startup, then initiate pre-programmed heating procedures on the control cabinet. Chamber temperature rises steadily following preset program parameters.
Internal resistance heating elements generate thermal energy during operation. Matched forced hot air circulation fans and duct systems drive hot air flow across the entire working zone. Continuous air movement reduces localized temperature differences inside the chamber, ensuring workpieces receive even heat coverage in all loading positions.
High-precision thermocouples collect real-time temperature data and feed signals to the PID controller. The controller adjusts heating output dynamically to follow programmed temperature curves. Standard processing sequences include continuous temperature rise and fixed-duration heat holding stages.
Once holding time reaches the set value, the built-in transfer mechanism activates. It moves the entire loading frame out of the furnace chamber and directly into the water quenching tank for rapid immersion cooling. Mechanical transfer shortens the idle interval between solution heating and quenching.
Field technicians set heating temperature, holding duration, transfer interval and quenching status based on specific aluminum alloy grades and industry heat treatment standards. The whole procedure lays a stable material foundation for subsequent aging treatment and final mechanical property formation.
Main Components

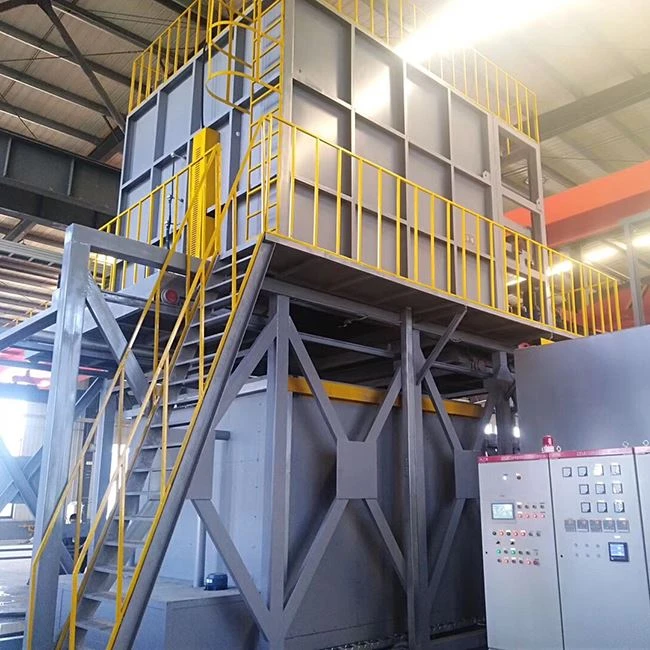

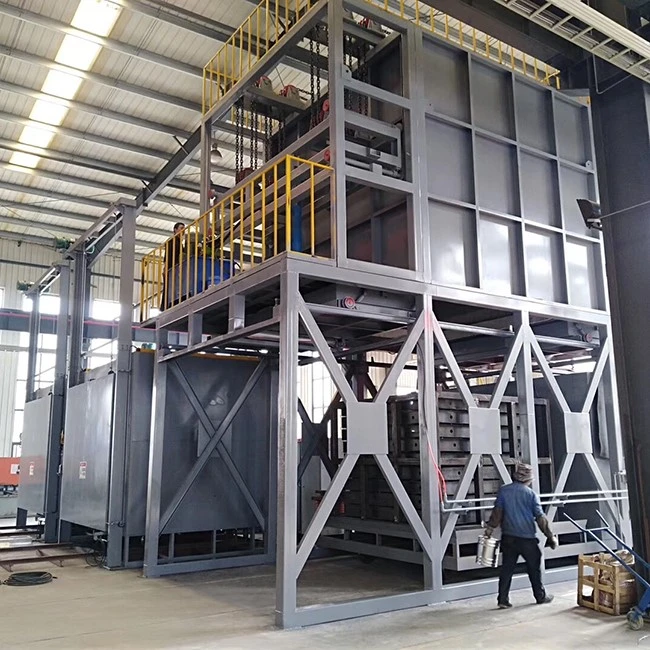

The aluminum alloy quenching furnace consists of three main parts: the furnace body, the quenching tank, and the electrical control system. The entire furnace has a square (or round) well-type structure, with the quenching furnace at the top and a movable quenching tank at the bottom. The furnace door is located at the bottom and is pneumatically opened. The quenching furnace is supported by a steel frame (or placed on a pit). The furnace shell is welded from shaped steel and steel plates, lined with refractory bricks and insulation material. The furnace top is a fully fiber-reinforced, suspended structure for easy maintenance and disassembly. The electric heating elements are spirally placed on wire-supporting bricks. An air guide system made of welded stainless steel is suspended from the furnace top and around the furnace walls. The entire structure is compact and rational, featuring rapid heating, good insulation performance, and energy saving. To ensure uniform heating of the workpieces, a high-pressure fan is installed above the furnace top to force airflow vortex circulation, guaranteeing uniform furnace temperature.
Application
This aluminum alloy quenching furnace undertakes solution treatment and quenching processing for aluminum alloy parts. It covers automotive manufacturing, rail transit aluminum alloy quenching furnace, aerospace component production, aluminum profile processing and general manufacturing industries.
Applicable workpieces include aluminum castings, extruded profiles, flat plates and various structural aluminum components. The equipment supports laboratory process verification, sample development and small-batch production runs.
For industrial deployment, all core parts can be tailor-configured. Customizable items include chamber dimensions, heating element matching, hot air circulation systems, loading frame specs, transfer mechanisms and quenching tank parameters. Control programs can be set and stored for different alloy grades and heat treatment cycles.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
