Product Introduction

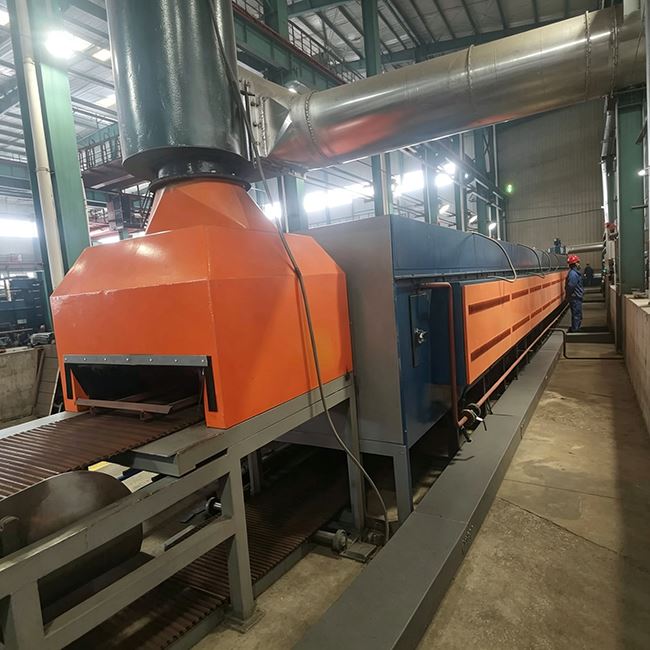

The Mesh Belt Tempering Furnace is used for continuous tempering of small and medium-sized metal parts after quenching or hardening. Instead of loading each batch separately, the workpieces move through the furnace on a heat-resistant mesh belt. The belt carries the parts through feeding, heating, holding and discharge sections in sequence, making the furnace suitable for high-volume production.

The furnace provides controlled thermal conditions during operation. It helps relieve residual stress and restore the required balance of hardness and toughness after quenching. Furnace length, belt width, heating power and conveying speed can be selected according to workpiece specifications and required production output. Custom furnace layouts are available for different automated production lines.

Working Principle

Workpieces are placed on the heat-resistant mesh belt through the feeding section. Driven by the drive and tensioning system, the belt carries the parts through multiple heating zones inside the chamber.

Heating elements are installed along the heating zones, while thermocouples measure the temperature in each section. The PID controller uses the measured values to adjust the heating output during operation. The controller keeps the furnace temperature within the required range while the belt continues to move the parts through the chamber.

Workpiece residence time is mainly controlled by the belt speed, allowing the heating and holding time to be adjusted for different tempering processes. After passing through the heating zones, the parts are continuously discharged for cooling or the next production step.

Main Components

01.

The Mesh Belt Tempering Furnace adopts an integral steel furnace body with refractory and thermal insulation lining to reduce heat loss during continuous operation. Multiple groups of electric resistance heating elements are arranged in separate heating zones to provide the required temperature conditions.

02.

The conveying system consists of a heat-resistant mesh belt, drive motor and tension adjustment device. These components keep the belt running smoothly during long production cycles. Matching feeding and discharge structures support continuous material transfer.

03.

Each heating zone is equipped with temperature sensors. The electrical control cabinet and PID temperature control modules monitor furnace temperature and adjust heating output during operation. Discharge and cooling structures can be configured to connect with subsequent production equipment.

Features

Continuous processing:

Unlike batch-type tempering furnaces, the mesh belt system allows parts to enter and leave the furnace continuously. This reduces repeated furnace opening and closing and is suitable for large quantities of small and medium-sized components.

Zoned temperature control:

The furnace is divided into several heating zones. Each zone can be adjusted separately according to the process requirements, helping maintain the required temperature along the heating chamber.

Adjustable belt speed:

Mesh belt speed can be adjusted according to the required residence time. This allows the heating and holding period to be matched with different materials, part sizes and tempering processes.

Reduced heat loss:

Multi-layer insulation limits heat loss during heating and holding. Heating output is adjusted according to the measured temperature in each zone.

Production line connection:

The furnace can be connected with quenching, cleaning, cooling, sorting or other equipment to form a continuous heat treatment line.

Application

This Mesh Belt Tempering Furnace is used in precision metal processing, automotive parts manufacturing, fastener production, hardware and machinery component industries.

Typical workpieces include bolts, nuts, pins, small gears, miniature shafts, springs and other small and medium-sized parts. The continuous conveying system is particularly useful where large quantities of similar components need to be tempered at a steady rate.
