Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of trolley type tempering furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized trolley type tempering furnace made in China here from our factory. For price consultation, contact us.

Product Introduction

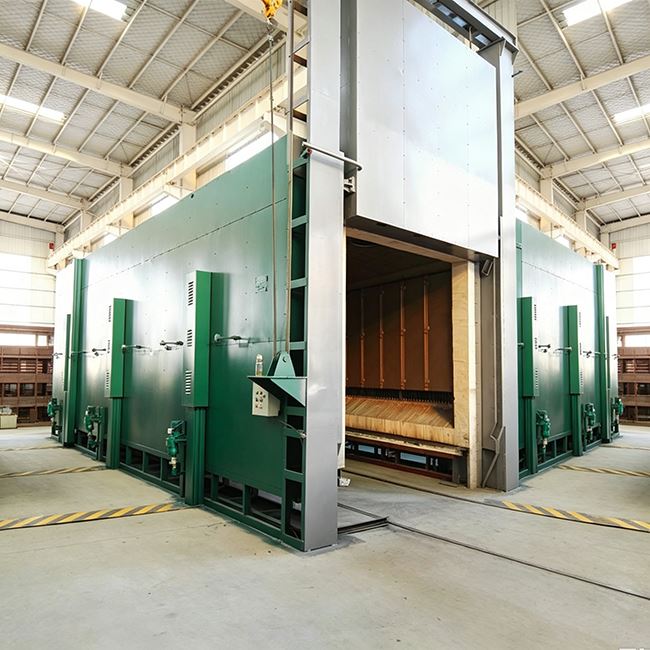

The Large Trolley Type Tempering Furnace is designed for tempering large and heavy metal workpieces after quenching or hardening. A movable trolley allows oversized and heavy components to be loaded and positioned outside the furnace before being moved into the heating chamber.

The furnace is suitable for batch processing and can be equipped with temperature recording, customized loading layouts and other control functions according to the production process.

Working Principle

Workpieces are placed and positioned on the heavy-duty trolley at the loading station. After the trolley moves into the furnace and the door is closed, the heating elements start according to the programmed heating curve.

The heating elements transfer heat to the workpieces through radiation and convection. Temperature sensors placed at different positions monitor the chamber temperature during heating and holding. The control system uses these readings to adjust heating output according to the selected tempering process.

After the holding stage, the workpieces can be cooled inside the furnace or transferred out for controlled cooling, depending on the specified process.

Features

Trolley loading design:

Workpiece loading and positioning can be completed outside the Large Trolley Type Tempering Furnace. This simplifies handling of oversized parts and makes loading and unloading more convenient.

Heavy-load capacity:

The reinforced trolley, track and furnace body are designed for heavy industrial applications. They can support high-weight forgings, castings and welded structural parts during repeated heat treatment.

Multi-zone temperature control:

Independent heating and control zones can be configured according to furnace size. This arrangement helps reduce temperature differences within the chamber and maintain consistent tempering conditions across large workpieces.

Efficient insulation:

The multi-layer insulation lining helps reduce heat loss during heating and holding, lowering energy consumption during operation.

Flexible process adjustment:

Heating rate and holding time can be adjusted according to different steel materials and tempering processes. Multiple process recipes can be stored for repeated batch production.

Technical parameters

Model.	Rated Power (kW)	Rated Temperature (°C)	Rated Voltage (V)	Number of Phases	Working Area Dimensions (mm)	Maximum Load Capacity (kg)	Weight (kg)
RT3-500-6	500	650	650	3	6000×2600×1500	40	52000
RT3-300-6	300	650	650	3	4500×1800×1300	15	28000
RT3-270-6	270	650	650	3	4000×1600×1000	10	22500
RT3-400-6	400	650	800	3	7180×1500×1500	25	31500
RT3-600-6	600	650	600	3	6000×2800×2200	60	55000
RT3-650-6	650	650	600	3	7000×2800×2400	70	73500
RT3-900-6	900	650	650	3	7000×3000×2200	90	75600
RT3-1020-6	1020	650	650	3	12500×2200×2300	120	96000

Applications

This Large Trolley Type Tempering Furnace is commonly used in forging plants, machinery manufacturing, construction equipment production, and other heavy industrial heat treatment applications.

Typical workpieces include large shafts, rollers, heavy gears, molds, structural frames, forgings and welded components requiring tempering after quenching or hardening. The movable trolley makes loading and unloading oversized workpieces easier and supports batch heat treatment of heavy metal parts.
