Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of energy-saving box type resistance furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized energy-saving box type resistance furnace made in China here from our factory. For price consultation, contact us.

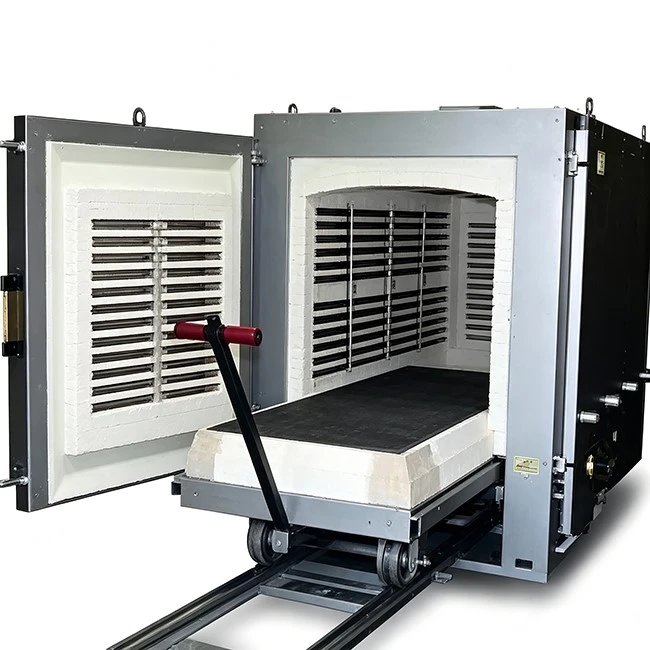

Product Introduction
Our energy-saving box type resistance furnace is an electric heating furnace developed for precise thermal processing with lower energy consumption. It features a standardized box-shaped furnace chamber with an insulated furnace chamber, electric resistance heating elements and automatic PID temperature control. The equipment is versatile for heating and heat treatment of metal parts, ceramic materials, industrial powders and refractory products, covering a wide range of industrial and experimental scenarios.
As a professional industrial furnace manufacturer, we adopt personalized design solutions based on clients' actual conditions, including workpiece dimensions, material characteristics, target heating temperature, processing cycle, daily production volume and on-site workshop environment. Compared with standard furnace configurations, this energy-optimized model focuses on suppressing heat dissipation from the furnace body and furnace door, reducing heat loss and improving temperature control.
We can flexibly configure the furnace temperature grade and overall equipment parameters to match diverse production demands. This furnace is suitable for both batch production and laboratory testing.
Working Principle
After workpieces are stably placed inside the furnace chamber and the furnace door is tightly closed, operators can launch the pre-set heating program. The built-in resistance heating elements convert electric energy into thermal energy, and evenly transfer heat to the workpieces through thermal radiation and hot air convection inside the sealed chamber.
The entire energy-saving box type resistance furnace body is lined with thermal insulation materials, which helps retain heat inside the chamber and reduce heat loss through the furnace walls and door. Multiple thermocouple sensors monitor real-time temperature changes in the chamber and transmit accurate data to the PID temperature controller. The controller adjusts heating output according to the measured temperature, helping reduce unnecessary power consumption during heating and holding.
Main Components
The furnace shell of the energy-saving box type resistance furnace is welded from high-quality structural steel and steel plates. The furnace lining uses high-strength, lightweight, 0.6g/cm³ energy-saving refractory bricks and high-temperature resistant aluminosilicate fiber felt. The heating elements are made of iron-chromium-aluminum high-resistance heating alloy (0cr25Al5), wound into a spiral shape and placed on high-strength refractory brick supports inside the furnace. A protective atmosphere can be added or the furnace door can be changed to an inclined design to enhance sealing, depending on the user's needs. Our factory can also significantly modify existing RX and RX2 type box-type furnaces to the RX3 type. The temperature control system uses a position-type temperature control cabinet or a silicon controlled rectifier (SCR) temperature control cabinet.
Features
Fast heating, excellent heat retention, precise control, significant energy savings, uniform component structure, stable and reliable quality, and safe and reliable operation.
Applications
This energy-saving box type resistance furnace is widely applied in metal processing, mechanical manufacturing, forging and casting industries, as well as ceramic production, powder metallurgy, university laboratories and scientific research institutions. It supports multiple thermal processes including annealing, tempering, normalizing, stress relief, aging treatment, preheating, sintering and calcination, and can meet various conventional thermal testing requirements.
It is especially suitable for working scenarios with frequent startup and long-term constant-temperature holding operations. By combining insulation materials, improved heating structure and automatic temperature adjustment technology, the equipment reduces heat loss and operating power consumption, while maintaining the required furnace temperature during the process.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
