Product Instruction

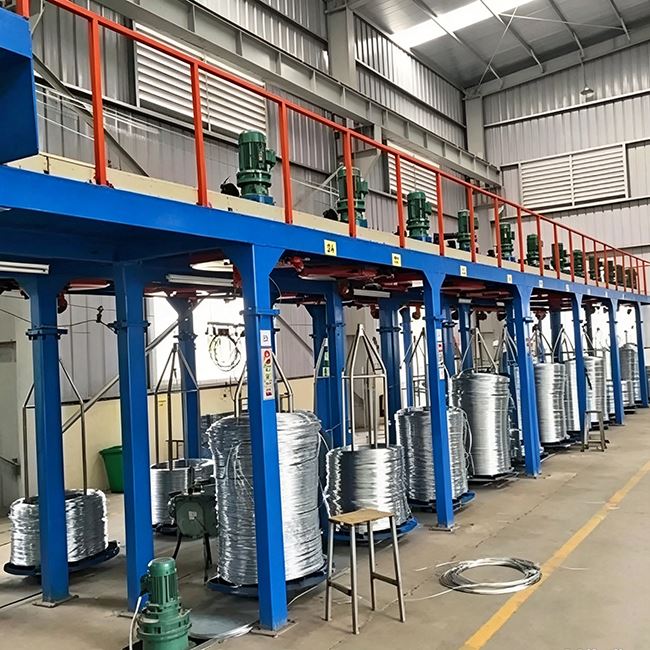

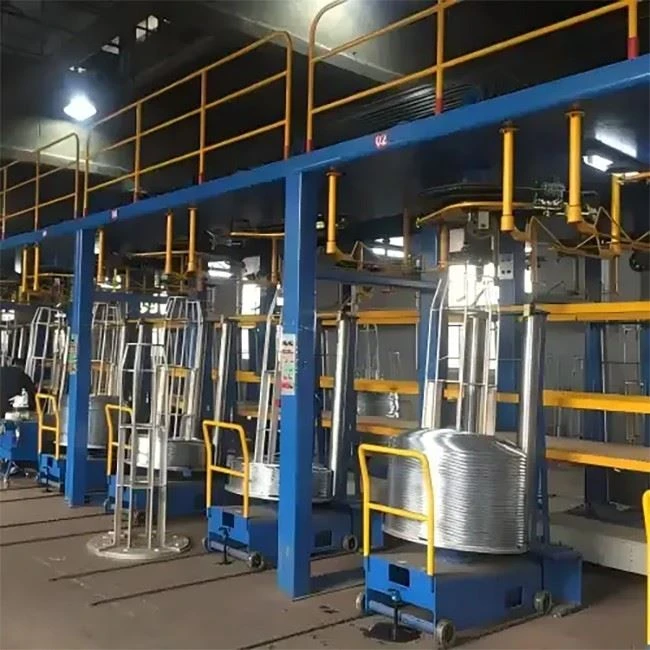

The Inverted Wire Take-up Machine is a continuous wire winding and take-up equipment designed for collecting finished wire and cable products after drawing, annealing, stranding, extrusion, or other production processes. Unlike conventional horizontal take-up equipment, its inverted winding structure allows the wire to be collected from the inside or lower part of the spool, providing a practical solution for applications requiring high-capacity wire collection and convenient coil handling.
As a manufacturer, we can configure the machine according to the wire diameter, material, line speed, coil dimensions, and production requirements. The equipment is suitable for copper wire, aluminum wire, steel wire, alloy wire, and other metal wire products.
Features
Stable Wire Tension – The tension control system helps maintain consistent tension during continuous winding and reduces loose or uneven coils.
Uniform Winding – The wire guide mechanism distributes the wire evenly across the coil to improve winding quality.
High Take-up Efficiency – Suitable for continuous production lines and can operate at relatively high winding speeds.
Line Speed Synchronization – The take-up speed can be coordinated with upstream drawing, annealing, extrusion, or other equipment.
Convenient Coil Handling – The finished coil can be removed and transferred more easily, reducing manual handling time.
Reliable Transmission System – A robust motor and transmission structure provide stable operation during long production cycles.
Easy Operation – The electrical control system allows operators to adjust take-up speed and other operating parameters conveniently.
Compact Equipment Layout – The machine can be integrated into existing wire production lines while making efficient use of available workshop space.
Low Maintenance Requirement – The machine uses a relatively simple mechanical structure, making routine inspection and maintenance convenient.
Product Structure
The Inverted Wire Take-up Machine generally consists of a winding frame, take-up reel, drive motor, transmission system, wire guide mechanism, tension control system, and electrical control cabinet. The take-up speed can be synchronized with the upstream production line to maintain stable wire tension and consistent winding quality. The finished coil can be removed efficiently, helping reduce manual handling and improve production efficiency.
Applications
The Inverted Wire Take-up Machine is widely used in wire drawing plants, cable factories, metal wire processing lines, copper and aluminum wire production, and other continuous wire manufacturing applications. Different reel sizes, motor powers, winding speeds, and control systems can be customized according to the customer's production line and finished product requirements.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
