Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of tilting melting furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized tilting melting furnace made in China here from our factory. For price consultation, contact us.

Product Introduction

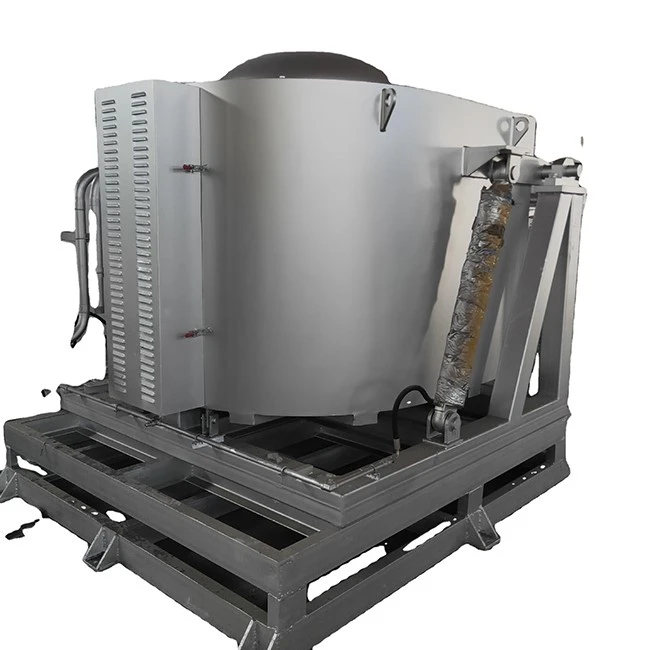

The Tilting Melting Furnace is an industrial unit for batch melting and temperature holding of non-ferrous metals. It supports gas-fired, diesel-fired and electric heating configurations to match different on-site energy supplies. Unlike fixed-type furnaces, this tilting design enables direct molten metal pouring from the furnace body, reducing the need for manual ladling during pouring.

After melting, the furnace can be tilted for molten metal discharge and, when required, slag removal. Thermocouples monitor furnace temperature, while the PID controller regulates heating output during melting and holding. The furnace is suitable for processing aluminum, copper, zinc, lead and their alloys.

Furnace capacity, heating power and tilting angle can be specified according to the required batch size and available installation space.

Main Components

Furnace Body: The furnace body is fabricated from welded steel plates and lined with refractory material designed for repeated heating and cooling cycles. The lining provides resistance to thermal erosion during continuous melting operations.

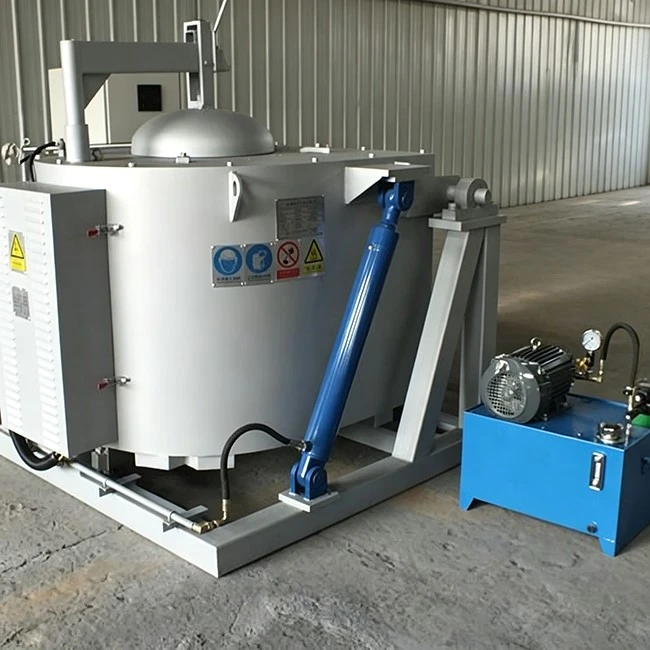

Hydraulic Tilting System: Hydraulic cylinders provide controlled furnace tilting for pouring and return the furnace to its operating position after discharge.

Heating Assembly: The heating system can be supplied as gas-fired, diesel-fired or electric, depending on the available energy source at the installation site. Gas and diesel models adopt industrial burner units, while electric models are equipped with dedicated heating elements. The heating system is selected according to furnace capacity, target temperature and available energy source.

Temperature Control System: Thermocouples monitor furnace temperature and send the measured signal to the PID control cabinet. The PID controller regulates heating output according to the preset temperature, keeping thermal conditions stable during melting and holding processes.

Thermal Insulation Structure: The Tilting Melting Furnace lining and insulation reduce heat loss during melting and holding.

Safety Protection: The control system includes over-temperature protection, hydraulic overload protection and an emergency stop circuit.

Features

Direct Tilting Pouring:

The furnace can discharge molten metal directly by tilting, reducing the need for manual ladling during batch production.

Multi-Metal Melting:

The furnace is suitable for melting aluminum, copper, zinc, lead and their alloys.

Multiple Heating Options:

Gas, diesel and electric heating options are available to match different workshop energy supplies.

Temperature Control:

PID control maintains the preset furnace temperature during melting and holding.

Customizable Specifications:

Furnace capacity, heating power and tilting angle can be specified according to production requirements and installation conditions.

Applications

This tilting melting furnace is used in foundries, die-casting workshops and non-ferrous metal processing plants for melting and holding aluminum, copper, zinc and their alloys. It is suitable for batch casting, ingot production and die-casting operations.
