Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of medium temperature trolley furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized medium temperature trolley furnace made in China here from our factory. For price consultation, contact us.

Product Introduction

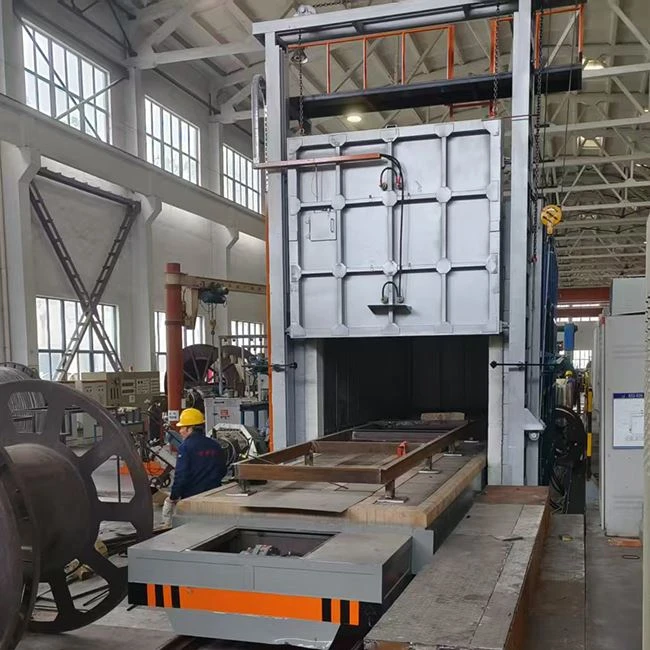

The Medium Temperature Trolley Furnace is a professional electric heat treatment device for industrial use. It mainly processes medium and large metal workpieces. The equipment adopts a movable bogie loading structure. Staff can use cranes, forklifts and other tools to load heavy and oversized workpieces directly. The furnace body is built with thick and sturdy steel. It is lined with high-quality refractory materials. The built-in electric heating system works stably in long-term operation. The equipment supports annealing, normalizing, tempering and stress relief processes. It meets daily medium-temperature heat treatment demands for various metal parts in industrial production.

Main Components

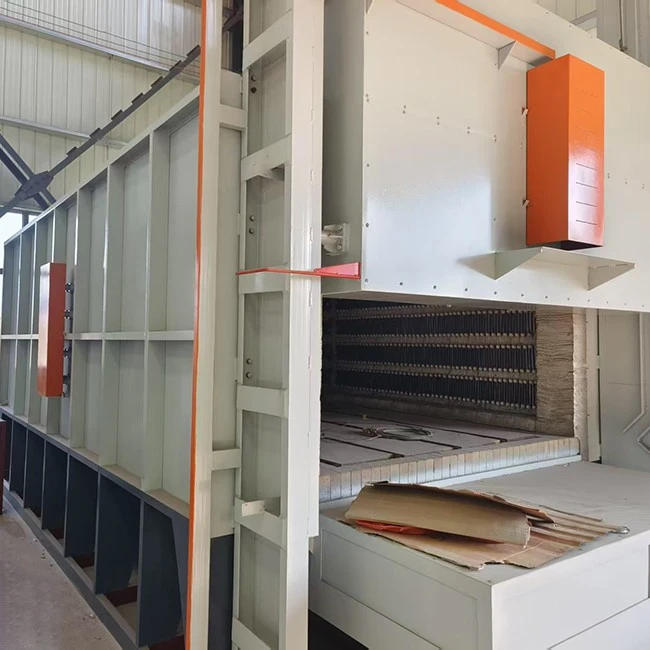

This series of Medium Temperature Trolley Furnaces consists of two parts: the furnace body and the electrical control system. The furnace body mainly includes the furnace shell, furnace lining, heating elements, furnace door, and bogie. The furnace shell is welded from steel plates and structural steel. The furnace lining is a composite lining composed of energy-saving ultra-lightweight refractory bricks, aluminosilicate fiber, and high-quality insulation materials. The heating elements are made of high-alloy resistance wire (or strip) wound into a spiral shape and placed on the furnace lining and bogie support bricks. The bogie can move back and forth for easy loading and unloading. A novel automatic seal is used between the bogie and the furnace shell, improving sealing performance. The lifting of the furnace door and the movement of the bogie are both driven by an electric reduction mechanism. The furnace bottom plate is made of heat-resistant cast steel, and a bogie tilting unloading mechanism is optional. The electrical control system mainly includes temperature control and operation functions. Temperature control is achieved through intelligent microcomputer program control, and a recorder is also provided to record the complete process curve and provide an over-temperature alarm. Operation is achieved through buttons and light displays, which control the movement of the trolley, the on/off state of the heating elements, and the raising and lowering of the furnace door. An interlocking device is also provided, which allows the trolley to move when the furnace door is raised or closed to a certain position, ensuring safety and reliability.

Features

This Medium Temperature Trolley Furnace is designed for medium and large metal workpieces. It reserves a large effective working chamber inside the furnace body. The matched bogie adopts heavy-load design to adapt to heavy workpiece loading. The equipment outputs even heat through overall arranged heating elements.

The PID automatic control mode realizes accurate temperature regulation. The refractory lining and sealed furnace door form a complete heat insulation structure. The external loading mode matches various handling equipment. Chamber size, working temperature, operating power and control configurations can be adjusted according to on-site production conditions.

Application Scope

This Medium Temperature Trolley Furnace applies to machinery manufacturing, steel processing, forging, casting, automotive component production and heavy equipment manufacturing. It conducts heat treatment for steel castings, forgings, welded structures, shafts and gears.

Applicable processes include annealing, normalizing, tempering, stress relief and workpiece preheating. The equipment can adjust internal structure and operation parameters according to factory production cycles and customized heat treatment requirements. It covers most medium-temperature processing scenarios for large metal components.
