Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of gas bell type furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized gas bell type furnace made in China here from our factory. For price consultation, contact us.
Product Introduction

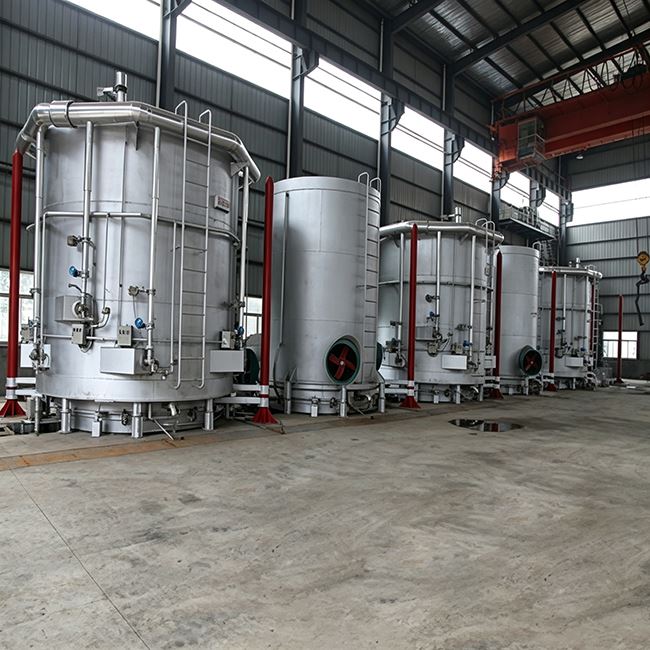

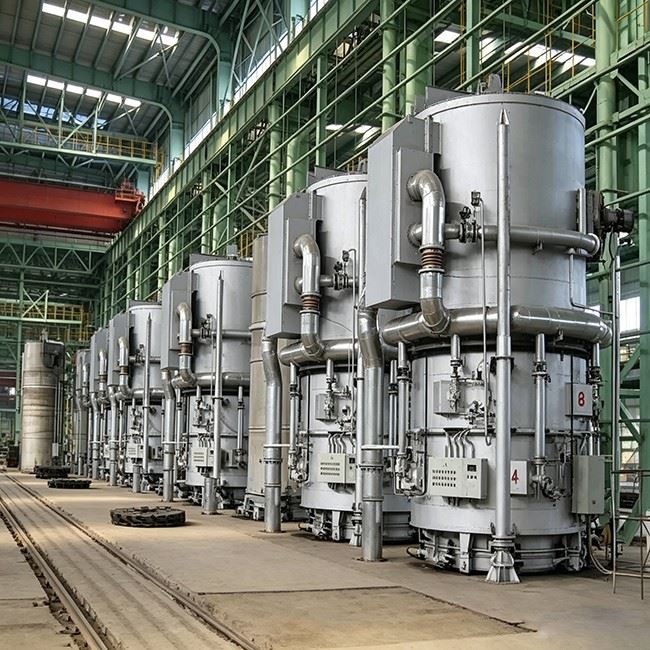

The Gas Bell Type Furnace consists of two main parts: a gas generator and a bell-type annealing furnace. The bell-type furnace comprises a fixed furnace platform, a movable outer hood, an inner hood, a cooling hood, and a control cabinet. The fixed furnace platform facilitates loading. The inner hood is circulated with protective gas and a powerful circulating fan, which can meet the bright annealing process requirements of steel strips and other types of products. The outer hood is lined with refractory fiber, reducing its weight and energy consumption.
Working Principle
Workpieces are placed and fixed on the furnace base. The heating bell covers the base to form a closed processing chamber. Air is removed from the chamber and replaced with the required protective gas to isolate external air.
Gas burners provide the required heat inside the heating bell, while the circulation system distributes heat around the workpieces. The circulating gas helps maintain uniform temperature throughout the chamber during heating and soaking. After heating and soaking, the heating bell can be lifted and moved to another furnace base while the treated workpieces continue cooling under the required atmosphere. This arrangement allows one furnace base to cool while another base is being heated, improving equipment utilization.
Features
01.
The bell-type furnace uses protective gas and has a strong circulation device (dual-speed fan) to improve heating quality.
01
02.
Except for certain special requirements, the bell-to-platform ratio is 1:2.
02
03.
The furnace heating is suitable for steel coils and steel plate stacks, given the significant differences in thermal conductivity in different directions.
03
04.
The furnace platform is an all-metal structure with a reasonable design and long service life.
04
04.
A vacuum system can be configured. In addition to the bell-type furnace, our company can also provide various specifications of gasifiers, electrical control cabinets, and ammonia decomposition units, etc.
05
Application
The Gas Bell Type Furnace is commonly used for heat treatment of steel coils, strips, wires, sheets and other metal products. Typical applications include annealing of metal products used in bearing, automotive and general machinery production. It is suitable for batch annealing and other controlled-atmosphere heat treatment processes for metal strips and coils.
