Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of bright tempering furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized bright tempering furnace made in China here from our factory. For price consultation, contact us.

Product Introduction

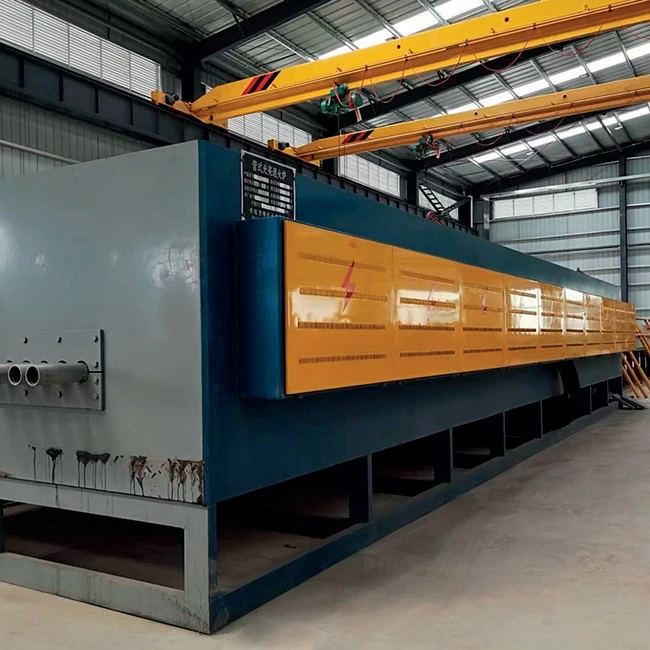

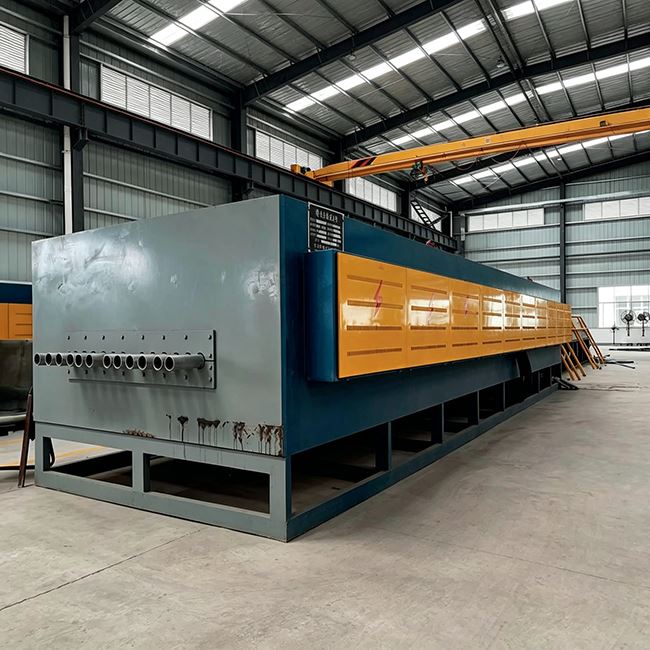

The bright tempering furnace is a heat treatment unit designed for tempering quenched metal parts in a controlled atmosphere. Unlike conventional open tempering equipment, it operates in a fully sealed chamber filled with inert or mixed protective gas, helping reduce surface oxidation, discoloration and decarburization during tempering.

The equipment helps relieve residual quenching stress and stabilize the metal structure while maintaining the required hardness and toughness of the workpieces. It supports batch processing of precision fasteners, springs, tool parts and automotive components. Chamber dimensions, temperature range and atmosphere configuration can be specified according to different steel grades and production requirements.

Working Principle

Quenched workpieces are loaded and sealed inside the bright tempering furnace chamber. Internal air and moisture are purged before protective gas is introduced to establish the required furnace atmosphere. The heating system raises the chamber temperature to the required tempering range and maintains the set temperature for the required holding time.

The PID controller adjusts heating output to maintain the set furnace temperature throughout the tempering cycle. After heat preservation, workpieces undergo slow cooling inside the sealed atmosphere. The controlled atmosphere helps maintain consistent mechanical properties and surface appearance between batches.

Main Components

Sealed Furnace Body:

Reinforced welded steel structure with multi-layer insulation lining, designed for controlled atmosphere operation with reduced heat loss for long-cycle production.

Uniform Heating System:

Evenly arranged resistance heating elements deliver balanced thermal radiation, helping maintain an even temperature distribution throughout the working zone.

Protective Atmosphere System:

Consists of gas delivery and flow regulation devices, supporting stable supply of nitrogen and mixed protective gas.

Circulation & Temperature Control Unit:

Equipped with internal circulation fans. Thermocouples monitor furnace temperature and send temperature signals to the PID control cabinet for heating control.

Precision Sealing Structure:

Optimized sealing design for furnace doors and connecting interfaces reduces external air infiltration and maintains stable internal atmosphere conditions.

Safety Protection System:

Features over-temperature cut-off, gas pressure monitoring, airflow interlock and fault alarm functions.

Features

01.

The controlled atmosphere helps reduce surface oxidation during tempering and can reduce the need for post-treatment caused by surface discoloration.

02.

Uniform heating and controlled cooling help relieve residual stress from quenching and support dimensional stability.

03.

Stable atmosphere and temperature control help maintain consistent hardness and surface quality across the batch.

04.

Multi-layer insulation lining reduces chamber heat loss, supporting stable thermal operation during repeated production cycles.

05.

Programmable temperature and atmosphere settings simplify batch operation. The structural design allows routine inspection and maintenance of the main furnace components.

Application

This bright tempering furnace is used in automotive parts production, precision hardware manufacturing, tool processing and spring production. It is suitable for bright tempering and stress relief of carbon steel, alloy steel and stainless steel components, including fasteners, springs, gears, shafts and precision structural parts.
