Product Introduction

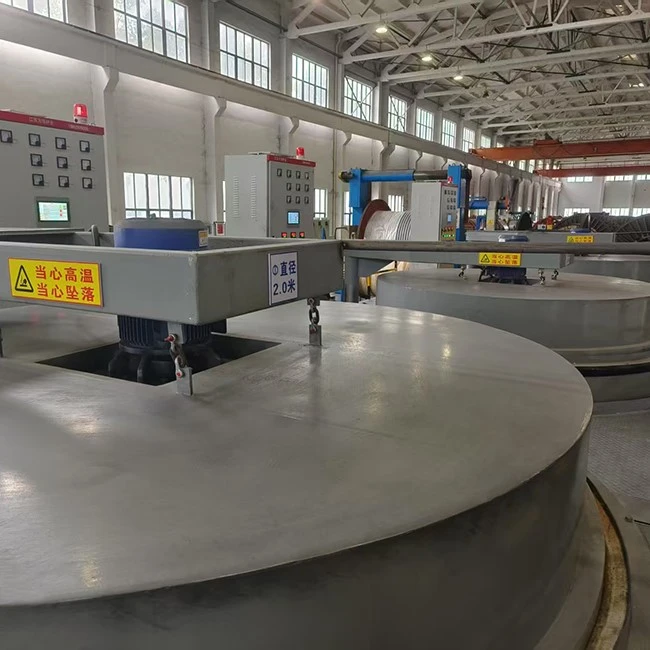

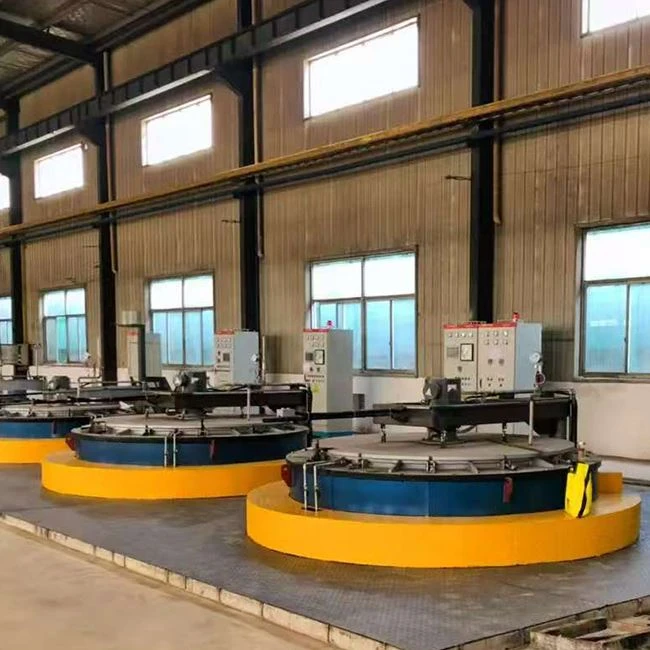

The pit type tempering resistance furnace is a periodic heat treatment equipment with a hot air circulation system. It has a maximum operating temperature of 650℃ and is mainly used for high-temperature tempering and annealing of various metal materials. It is the ideal equipment for processing small shaft parts. When used in conjunction with a control system, the heating temperature of the equipment can be automatically controlled.
Working Principle
Workpieces are vertically suspended and fixed with dedicated fixtures inside the deep furnace chamber to reduce bending risks during heating. After the furnace cover is tightly sealed, internal resistance heating elements operate according to preset tempering temperature curves. The system maintains constant-temperature holding to balance internal and external temperature of workpieces, facilitating uniform microstructure adjustment and stress release. When the holding cycle finishes, workpieces cool down following controlled cooling procedures. Processing parameters are selected based on workpiece material, size and post-quenching state to keep consistent thermal treatment conditions for each production batch.
Main Components
The pit type tempering resistance furnace adopts reinforced welded steel body to adapt long-term cyclic heating operation. The inner chamber is paved with high-density fiber insulation lining to reduce heat dissipation. Evenly arranged resistance heating elements provide steady heat output across the whole working area. The compression-sealed furnace cover guarantees chamber tightness during operation.
It is equipped with PID programmable control cabinet and high-precision thermocouples for real-time temperature monitoring and power adjustment. Independent electrical control system simplifies on-site operation. Matching safety configurations including over-temperature protection, power-off protection and fault alarms support stable long-term equipment operation.
Features
The 650°C series is equipped with a specially designed gas circulation mechanism and a comprehensive ventilation unit (including fan blades), providing high flow rate, excellent airtightness, and furnace temperature uniformity meeting aviation and military standard Class 1-2 furnace requirements;
It adopts an ultra-lightweight and energy-saving composite furnace lining, resulting in energy savings;
A simple drip-type protective atmosphere can be added to achieve a low-oxidation effect;
The furnace cover adopts an innovative multi-layer sealing structure and uses manual levers, electro-hydraulic mechanisms, and worm gear mechanisms for lifting and lowering, reducing labor costs;
It has excellent furnace temperature uniformity, reaching ±5°C, with a temperature control accuracy of 1°C;
It has a dedicated thermocouple device for measurement and control, which can meet the different requirements of aviation, military, and national standards.
Application
This pit type tempering resistance furnace serves machinery manufacturing, automotive, petroleum and metallurgical industries. It is commonly used for tempering and stress relief of long shafts, drill rods, bolts, pipe fittings and quenched steel structural components, meeting conventional and precision heat treatment demands for industrial production.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
