Product Instruction

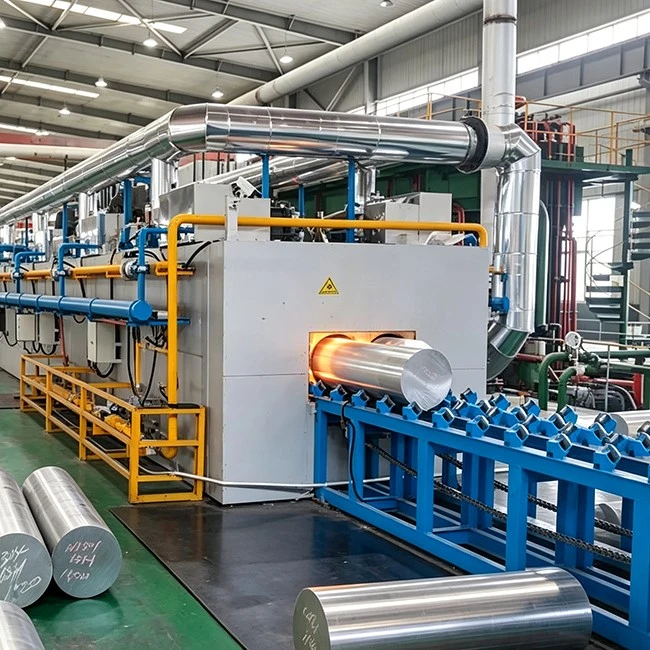

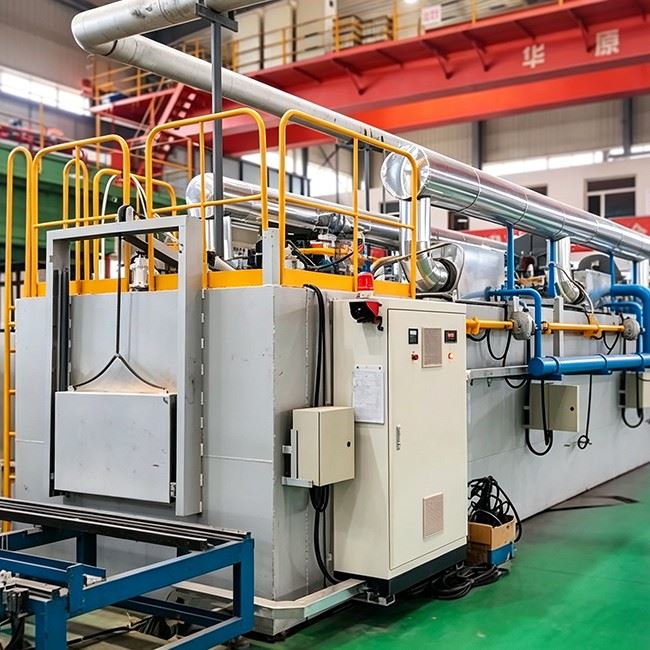

The Continuous Aluminum Bar Heating Furnace is a type of continuous heating equipment used for heating aluminum rods, steel ingots, and steel billets.
The unit handles aluminum billets of varying diameters and lengths. Operators set heating temperature and holding time based on alloy grade, billet dimension, target outlet temperature and forming process requirements. Conveying speed gets fine-tuned to match real-world heating demands.
Working Principle
Aluminum billets are loaded onto the feeding system and fed into the furnace. The conveying mechanism pushes billets through preheat and heating sections at a stable, controlled speed.
The continuous aluminum bar heating furnace is split into multiple independent heating zones. Every zone runs on separate temperature setpoints. Temperature rises progressively from inlet toward outlet, instead of direct heating to target temperature in one step.
Thermocouples collect real-time in-furnace temperature readings. The control cabinet compares measured values against setpoints and modulates heating output accordingly. With proper tuning of zone temperatures and line speed, billets reach target temperature by the discharge point.
Main Components
01.
The furnace shell is an all-steel structure, aesthetically pleasing and sturdy. The furnace lining is a composite lining composed of heat-insulating materials, thermal insulation materials, and refractory products, ensuring excellent overall airtightness and a long service life.
01
02.
The heating elements use high-resistance alloy wire and strip produced by Shougang Group.
02
03.
The steel material chutes employ water-cooled, water-free, and semi-heated chutes, optimizing the tube-to-bottom ratio and reducing heat loss.
03
04.
Charging and discharging methods include end-in/end-out and end-in/side-out.
04
05.
The furnace design utilizes a continuous steel strip stacking structure.
05
Features
Continuous billet processing: Billets move through the furnace during operation. Less frequent manual loading and unloading work.
Multi-zone segmented heating: Independent zone control achieves customizable temperature gradient along furnace length.
Adjustable conveying speed: Line speed can be modified for different billet sizes, alloy grades, target temperatures and heating cycles.
Dual heating options: Field-selectable electric resistance heating or gas-fired heating to fit customer-site energy resources.
PID automatic temperature regulation: Thermocouple feedback enables closed-loop adjustment of heating power.
Production-line compatible: Feeding and discharge interfaces fit extrusion presses, forging presses and other downstream equipment.
Custom-oriented engineering: Furnace dimension, zone quantity, installed power, conveyor structure and material-handling layout are engineered for given production throughput.
Applications
This continuous aluminum bar heating furnace mostly pairs with aluminum extrusion presses and forging equipment. It also serves aluminum rolling and other non-ferrous hot-forming workflows.
For extrusion lines, the furnace brings billets up to process temperature and delivers heated billets continuously toward extrusion tools. Within the designed operating range, operators process different billet sizes by adjusting machine parameters.
We can supply matched hardware including automatic feeders, discharge conveyors, surface temperature check units and material handling modules. All auxiliary equipment can be arranged to match existing production-line layout and user-site requirements.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
