Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of cleaning annealing furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized cleaning annealing furnace made in China here from our factory. For price consultation, contact us.
Equipment Overview

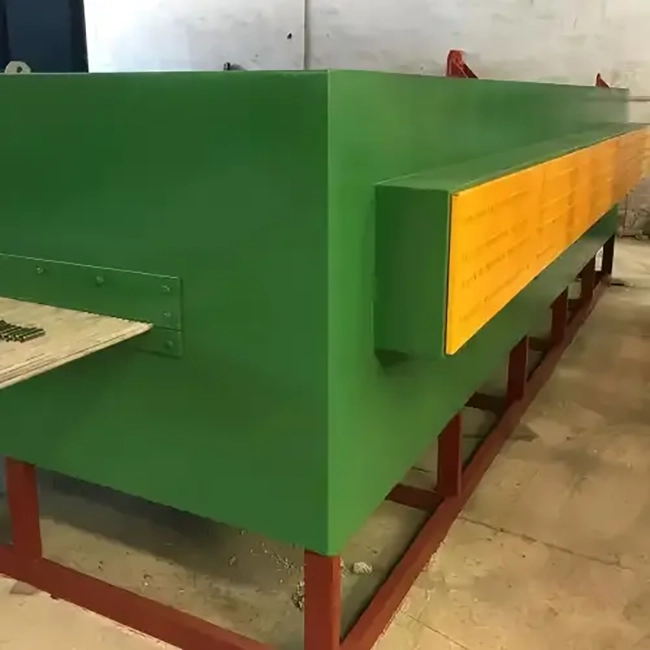

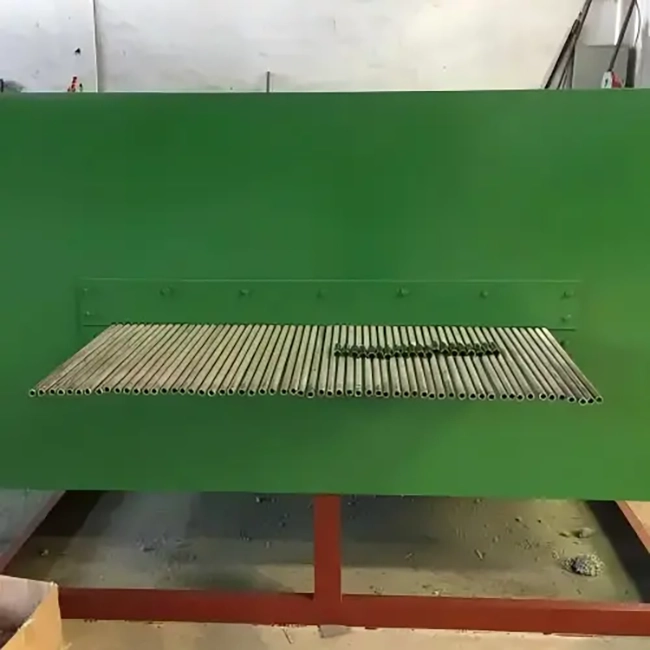

This cleaning annealing furnace is a batch electric heating equipment dedicated to integrated metal surface treatment and annealing processing. It combines high-temperature cleaning and stress relief annealing in one unit, targeting metal parts with surface oil contamination, oxide layers and residual processing stress after stamping, machining and forming. The equipment adopts fully sealed body structure and high-temperature fiber insulation. It conducts cleaning and annealing in a single heating cycle, suitable for precision metal part processing and stable batch production.
Structural Configuration
The whole machine adopts standard industrial assembly structure. The furnace body is formed by thick steel plate welding, with fully sealed furnace door to isolate external air and avoid secondary contamination. The inner cavity uses high-temperature and corrosion-resistant insulation lining, adapting to gases released during the cleaning process. Alloy heating elements are arranged evenly around the cavity to realize even heating. Supporting configurations include multi-point thermocouples, PID program control cabinet and independent electrical control system. It is equipped with over-temperature power off, fault alarm and operation interlock devices to meet long-cycle production safety needs.
Operation Workflow
Operators place sorted workpieces into the furnace cavity and close the sealed furnace door. According to workpiece material and surface dirt condition, corresponding process parameters are set to start the equipment. In the high-temperature cleaning stage, internal heat decomposes and volatilizes residual oil stains and surface oxides on workpieces. After cleaning, the equipment enters constant-temperature annealing stage. Uniform heat penetration acts on workpiece interior to eliminate residual stress. After heating and holding, workpieces cool down following fixed procedures, finishing integrated cleaning and annealing processing.
Processing Objects
This Cleaning Annealing Furnace fits various precision metal workpieces with surface dirt and processing stress. Typical processing parts include stainless steel stamping parts, hardware precision accessories, electronic metal components and aerospace components. It is widely adapted to workpiece processing in precision hardware, electronic manufacturing, stainless steel products and aerospace supporting industries.
Processing Capabilities
The equipment supports two core working procedures: high-temperature degreasing cleaning and stress relief annealing. It removes surface oil stains and oxide layers generated during machining and stamping. The annealing process improves metal material structure and mechanical properties, relieves processing stress and optimizes workpiece surface finish. Integrated processing simplifies production steps, cuts intermediate transfer links and improves overall production efficiency.
Customizable Items
Multiple equipment parameters and structures support customization according to actual production requirements according to actual production demands. Working temperature range, cleaning holding time and annealing holding time can be adjusted for different metal materials and dirt adhesion levels. Furnace cavity size and overall heating power are customized based on workpiece size and batch processing capacity.
The Cleaning Annealing Furnace can be matched with manual loading tools or customized special tooling fixtures. Temperature control modes can be upgraded to zoned temperature control for high-precision processing requirements. The control system supports parameter storage and data recording functions. Electrical configurations can also be adjusted to adapt to different factory power supply conditions.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
