Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of trolley type hot air circulation drying furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized trolley type hot air circulation drying furnace made in China here from our factory. For price consultation, contact us.

Product Introduction

The Trolley Type Hot Air Circulation Drying Furnace is designed for batch low-temperature processing of large and heavy workpieces. It is built specifically for workpieces that cannot be moved easily by manual operation. This furnace is equipped with a motor-driven trolley to facilitate loading and unloading of heavy workpieces.

The furnace adopts hot air convection circulation heating. It is used for drying, curing and preheating workpieces of various types. This equipment is commonly used in casting workshops, coating production lines and new material processing plants. It provides uniform heating for workpieces of different shapes and sizes.

Main Components

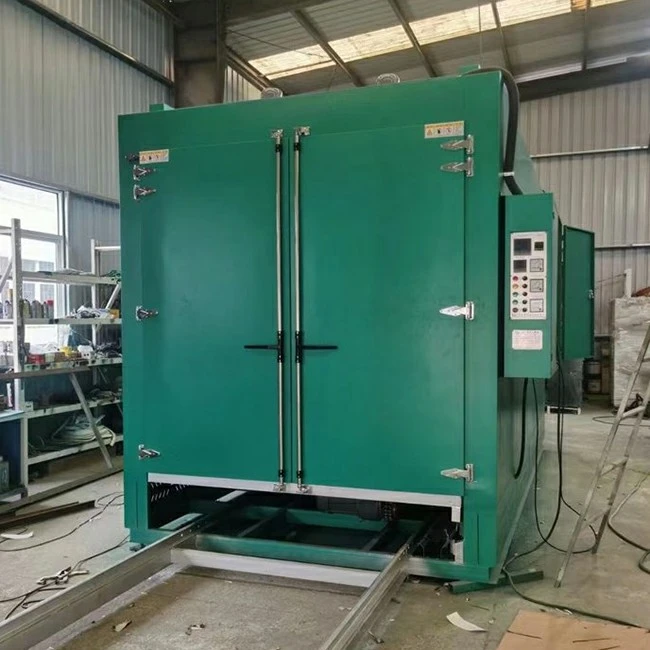

The Trolley Type Hot Air Circulation Drying Furnace is mainly used for uniform temperature drying of various processed parts. The structure consists of the furnace body, trolley, heating device, and control system.

The furnace body's outer frame is welded from structural steel, with both inner and outer walls made of high-quality cold-rolled steel plates, resulting in a low coefficient of thermal deformation. The inner lining uses aluminosilicate refractory fiber needle-punched cotton as insulation material, reducing furnace wall temperature rise.

The furnace door and shell also use a welded steel frame, with the outer wall also made of cold-rolled steel plates. The inner lining also uses aluminosilicate refractory fiber needle-punched cotton as insulation material.

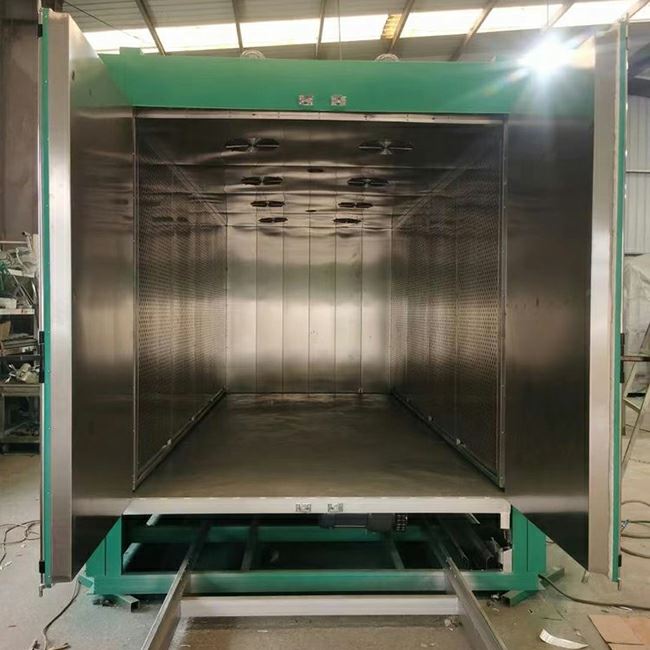

The trolley is welded from structural steel and equipped with wheels at the bottom for flexible movement. The entire trolley can be pushed into the furnace body.

Rubber asbestos packing is embedded around the furnace opening. When the furnace door is closed, it fits tightly against the rubber asbestos packing at the furnace opening, ensuring no heat loss.

The heating elements are strip-shaped electric heating elements, arranged on both sides of the furnace chamber, made of 0Cr25AL5 alloy, offering a long service life.

The temperature control system employs a PID zero-crossing triggered SCR and intelligent temperature control. Additionally, a multi-point automatic recorder from Shanghai Dahua Instrument Factory is used for temperature recording and over-temperature alarm dual control to ensure the workpiece does not exceed its temperature limit.

The mechanical transmission components of the electric furnace are interlocked. This means that the power to the ventilation fan and heating elements is automatically cut off when the furnace door is opened. Power to the ventilation fan and heating elements can only be restored after the furnace door is fully closed, preventing malfunctions and accidents due to misoperation.

Features

The motor-driven trolley makes it easier to load and unload oversized and heavy workpieces. The closed hot air circulation system helps maintain a more uniform temperature inside the chamber. The fiber insulation reduces heat loss and helps keep the outer furnace surface at a lower temperature.

It supports repeated batch processing. On-site structure and parameters can be adjusted to adapt to different processing environments and workpiece types.

Application

This Trolley Type Hot Air Circulation Drying Furnace focuses on low-temperature batch thermal processing. Common applications include coating curing, drying of castings, electrode drying, rubber product baking, composite material treatment and hardware preheating. It applies to conventional processing scenarios in machinery manufacturing, automotive parts production and new material industries.
