Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of large gas furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized large gas furnace made in China here from our factory. For price consultation, contact us.
Product Introduction
The Large Gas Furnace is designed for heat treatment of large and heavy metal workpieces. It uses natural gas or liquefied petroleum gas (LPG) as fuel for thermal processing. It handles oversized castings, forgings, steel structural parts and heavy molds. It is used for annealing, normalizing, tempering and stress relief treatment for heavy workpieces.
Gas heating can reduce operating costs in applications that require long heating cycles or high furnace capacity. It is suitable for continuous production involving large and heavy workpieces.
Working Principle
Fuel gas is mixed with combustion air in the burners and ignited to produce hot flue gas. Heat transfers to workpieces through radiation and convection inside the furnace chamber. The control system adjusts the burner output according to the furnace temperature. Combustion waste gas is discharged through the dedicated flue system.

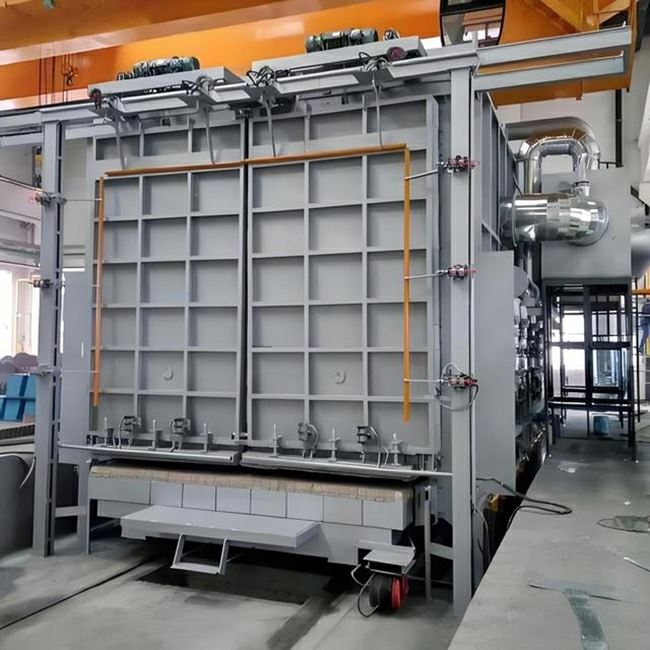

A heat-resistant trolley moves in and out of the furnace to complete workpiece loading and unloading. Temperature sensors continuously monitor the furnace temperature. The system maintains the preset furnace temperature throughout the heating cycle.
Main Components
01.

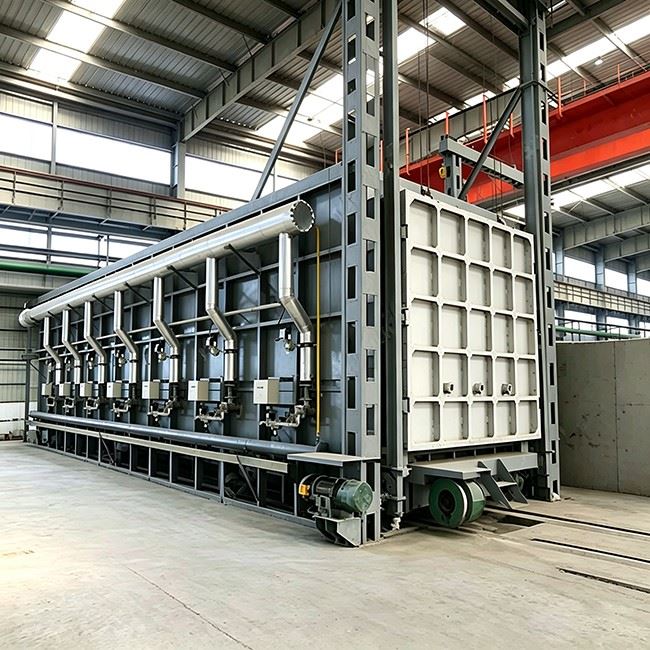

The furnace body is constructed with thick welded steel plates and lined with composite refractory and insulation materials. The structure of Large Gas Furnace is designed for continuous high-temperature operation. Multiple gas burners are arranged inside the chamber to meet uniform heating requirements.
02.
The gas supply system consists of gas supply pipelines and safety interlock devices to monitor gas pressure and ensure combustion safety. A flue system removes combustion gases from the furnace. The equipment is equipped with a load-bearing travelling trolley and independent driving mechanism for heavy workpiece handling.
03.
Additional components include thermal sealing structures, temperature sensors and an integrated combustion control cabinet.
Features
Uniform furnace temperature ensures even heating of workpieces;
Large loading capacity and high productivity make it suitable for tempering and preheating various types of machine parts;
The furnace lining uses a full fiber structure, improving furnace insulation performance, saving energy, and reducing production costs;
Convenient furnace loading and unloading provide good operating conditions;
Large gas-fired furnaces are equipped with interlocking protection devices to prevent malfunctions and accidents caused by misoperation;
Pollution-free and environmentally friendly.
Application
This Large Gas Furnace is mainly used for thermal processing of heavy castings, large forgings, steel structural components, mining machinery parts and thick industrial molds. It completes annealing, normalizing and stress relief treatment for heavy metal workpieces.
Typical users include foundries, heavy machinery manufacturers, steel structure plants and equipment manufacturers.
