Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of aluminum alloy melting furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized aluminum alloy melting furnace made in China here from our factory. For price consultation, contact us.
Product Introduction

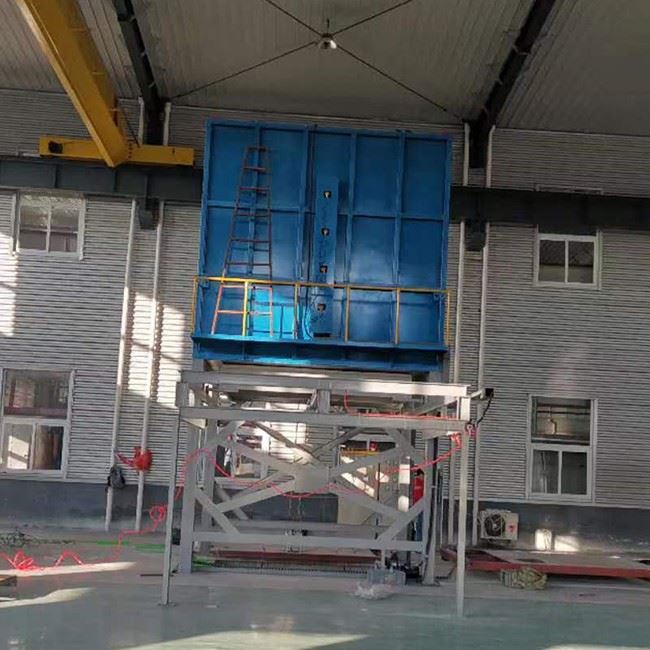

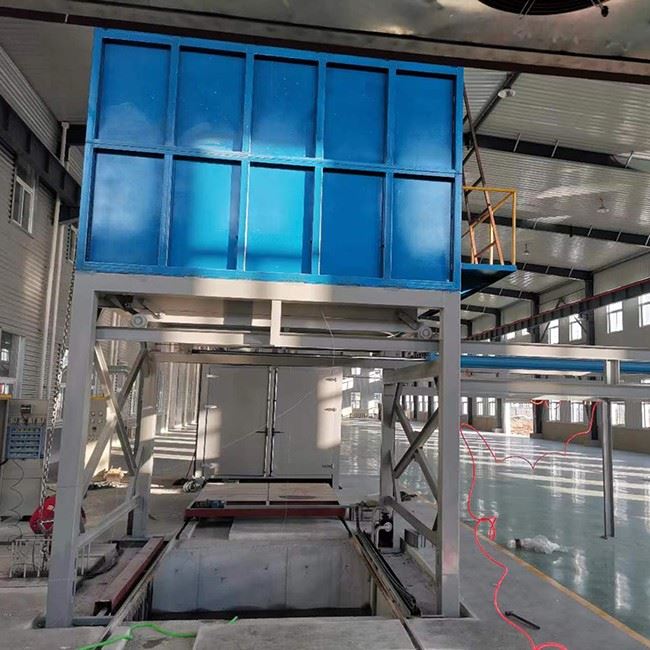

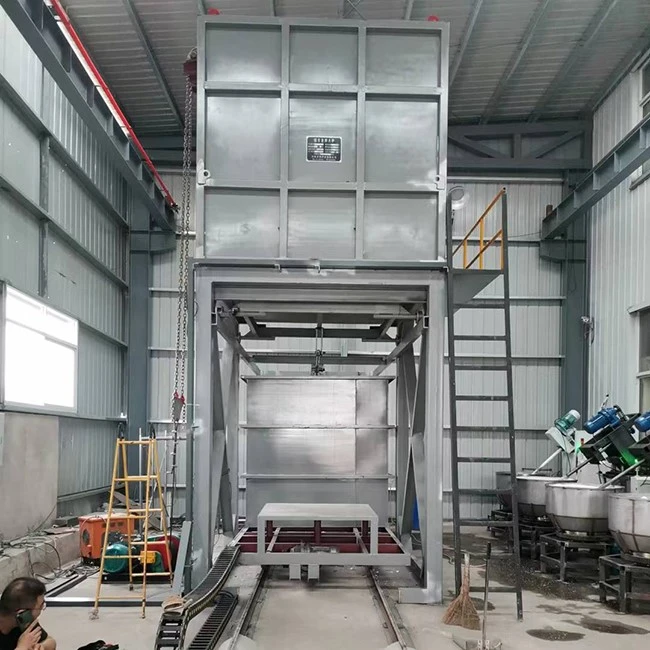

The Aluminum Alloy Melting Furnace is an industrial furnace designed for melting aluminum and aluminum alloys before casting and other forming processes. It provides controlled heating conditions for aluminum ingots, production returns, clean scrap, and other suitable charge materials.
Depending on the furnace design, heating can be provided by natural gas, LPG, diesel, or electric resistance elements. The melting chamber is lined with high-temperature refractory materials to withstand repeated thermal cycles and limit heat loss during operation. Optional equipment includes a crucible, automatic temperature control system, mechanical charging equipment, and tilting or tapping mechanisms.
Furnace capacity, melting rate, heating method, chamber dimensions, burner arrangement, temperature control system, and pouring configuration can be selected according to the alloy grade, batch size, required output, and available workshop space.
Working Principle
Aluminum alloy charge materials are loaded into the furnace chamber or crucible. In fuel-fired models, the burner mixes the fuel with combustion air and generates a high-temperature flame. Heat is transferred from the furnace chamber to the charge mainly by radiation and convection. As the temperature rises, the aluminum charge gradually softens and melts. Once the required melting condition is reached, the furnace enters the temperature-holding stage before pouring.
In electric models, resistance heating elements convert electrical energy into heat, which is transferred to the charge through radiation and convection within the furnace chamber.
During the melting cycle, thermocouples continuously monitor the furnace temperature. The control system adjusts the heating output according to the preset temperature parameters. After the aluminum alloy has fully melted, the molten metal is maintained within the required temperature range before being discharged or transferred to downstream casting equipment.
Characteristics
Designed for Aluminum Melting: The Aluminum Alloy Melting Furnace is configured around the melting characteristics of aluminum and aluminum alloys, with the heating system and temperature control selected to meet the required aluminum melting conditions.
Suitable Charge Materials: The furnace can process aluminum ingots, production returns and properly prepared aluminum scrap, depending on the material condition and melting requirements.
Flexible Heating Configuration: The heating system can be selected to suit the available energy source and operating conditions at the installation site.
Thermal Insulation: High-temperature refractory lining reduces heat loss from the chamber and protects the furnace shell during repeated heating cycles.
Automatic Temperature Control: Thermocouples provide continuous temperature feedback, while the PID controller adjusts heating output to maintain the required melting and holding temperature.
Fixed or Tilting Furnace Design: The furnace can be supplied as a fixed unit or with a tilting mechanism, depending on the charging and pouring method. Crucible-type designs are also available for applications requiring indirect heating.
Flexible Material Handling: Charging and molten metal discharge can be carried out manually or with mechanical equipment. Molten metal transfer systems can also be integrated where required.
Customized Furnace Design: Furnace capacity, heating power, chamber dimensions and auxiliary equipment can be determined according to production capacity, material characteristics and available installation space.
Applications
The Aluminum Alloy Melting Furnace is widely used in aluminum casting, die casting, automotive component manufacturing, machinery manufacturing, hardware production, aluminum profile processing, and non-ferrous metal foundries.
It is suitable for melting aluminum ingots, aluminum alloy materials, production returns, and clean aluminum scrap before gravity casting, die casting, sand casting, permanent mold casting, and other forming processes.
Additional equipment may include automatic temperature control, mechanical charging, molten metal transfer systems, furnace tilting mechanisms, burner management, exhaust equipment and production-line integration.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
