Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of gas fired melting furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized gas fired melting furnace made in China here from our factory. For price consultation, contact us.
Product Introduction

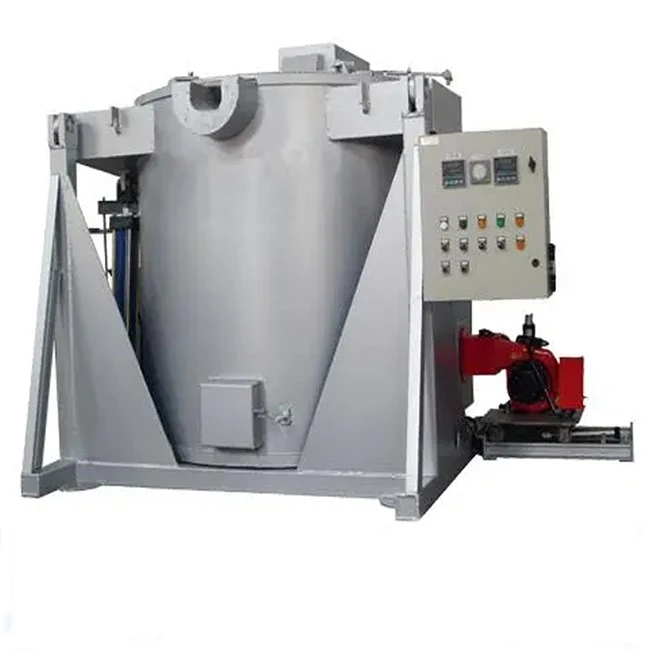

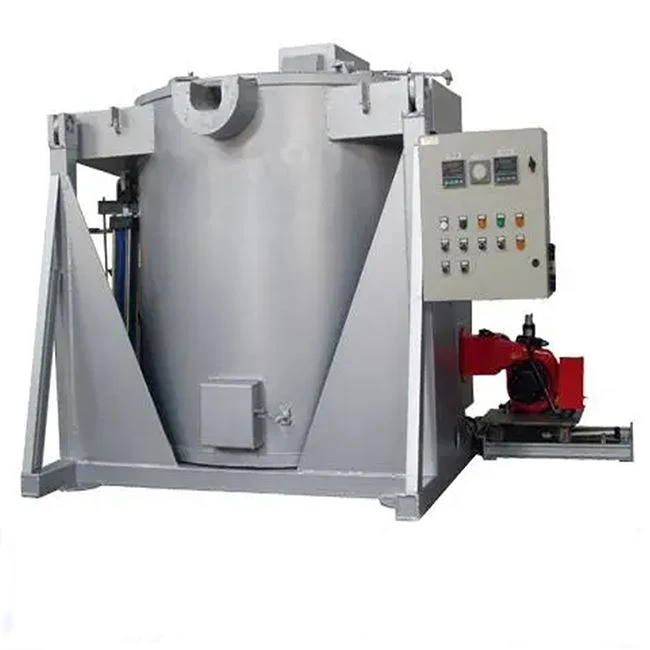

The Gas Fired Melting Furnace uses gaseous fuels as its primary heat source for non-ferrous metal melting and casting processes. It is suitable for melting aluminum, copper, brass, bronze and zinc alloys in industrial foundry applications.
Equipped with industrial gas burners, the equipment supports direct and indirect chamber heating modes, selectable based on structural design and material processing standards. The furnace body is fitted with refractory insulation to reduce heat loss during long-term high-temperature operation.
Gas Fired Melting Furnace capacity, internal chamber size, burner layout, fuel type, melting temperature, charging method, pouring structure and temperature control system can be configured according to material and production requirements.
Working Principle
Operators load the metal charge into the melting chamber or crucible before activating the burner system. Fuel gas mixes with combustion air inside the burner and ignites to generate a high-temperature flame for material heating.
Heat is transferred to the metal charge through thermal radiation and gas convection. The refractory lining helps retain heat inside the chamber and reduce heat loss during operation.
Built-in thermocouples and temperature sensors track chamber and molten metal temperature in real time. The automatic control system adjusts burner operating power according to preset process parameters, maintaining stable thermal conditions throughout melting and temperature holding stages. Once the molten metal reaches the required pouring temperature, it is discharged through the configured pouring mechanism.
Features
Natural Gas or LPG Heating: The burner system can be configured for natural gas, LPG or other suitable gaseous fuels.
Adjustable Burner Output: Burner output can be adjusted according to metal type, batch size and required melting rate.
Direct or Indirect Heating: The heating arrangement can be selected according to furnace structure and material requirements.
Batch or Continuous Operation: Furnace configurations are available for intermittent batch melting or longer continuous production.
Refractory-Lined Chamber: High-temperature lining reduces heat loss and protects the Gas Fired Melting Furnace shell during operation.
Automatic Temperature Control: Temperature sensors monitor operating conditions and allow automatic adjustment of burner output.
Fixed or Tilting Structure: Fixed, tilting and crucible-type configurations can be selected according to charging and pouring requirements.
Manual or Mechanical Pouring: Different pouring arrangements are available for different production methods.
Configurable Charging and Exhaust Systems: Charging equipment and exhaust arrangements can be adapted to the installation site.
Customized Furnace Capacity: Furnace volume, chamber dimensions and burner capacity can be selected according to production requirements.
Applications
This gas fired melting furnace is used in non-ferrous metal foundries, aluminum and copper alloy processing, hardware manufacturing and metal recycling industries. It is used for melting aluminum alloys, copper, brass, bronze, zinc and other non-ferrous metals before casting, die casting or other forming processes.
Optional supporting configurations cover multiple furnace capacities, burner combinations, fuel supply systems, temperature control modules, charging and pouring equipment, exhaust devices and safety interlock systems to adapt to different production scales and process standards.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
