Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of oil-fired aluminum melting furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized oil-fired aluminum melting furnace made in China here from our factory. For price consultation, contact us.
Product Introduction

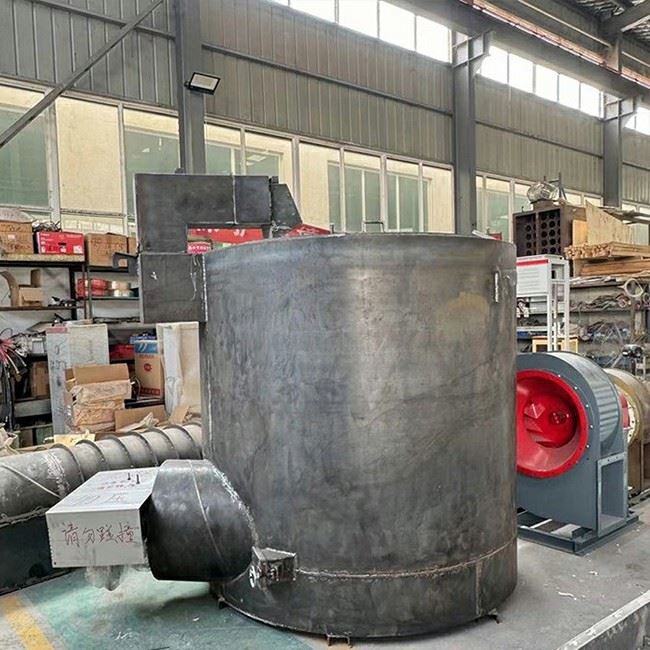

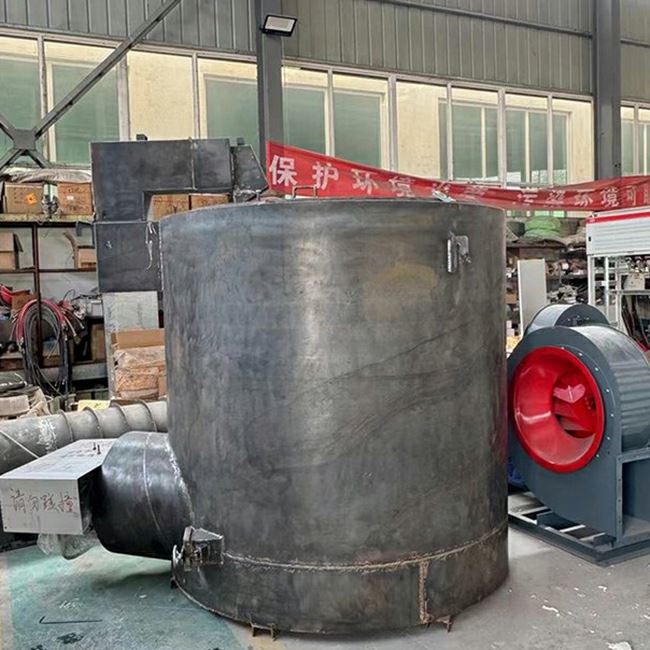

The Oil Fired Aluminum Melting Furnace is designed for melting and holding aluminum and aluminum alloy materials using diesel as liquid fuel. It provides an alternative heating method, suitable for factories where liquid fuel is readily available or where oil-fired heating is preferred.
The furnace is applicable for processing aluminum ingots, aluminum scrap and recycled aluminum materials. Built with a dedicated melting chamber and molten metal holding zone, it supports repeated batch melting and holding operations. The overall structure adapts to repeated production cycles for aluminum casting and recycled aluminum processing lines.
Working Principle
Solid aluminum materials are loaded into the refractory-lined melting chamber. The oil burner atomizes diesel fuel and mixes it with combustion air for stable ignition and continuous combustion. The combustion chamber transfers heat to the aluminum charge through radiation and hot combustion gases, allowing the aluminum charge to melt gradually as the furnace temperature rises.
Temperature sensors and thermocouples monitor chamber temperature in real time. The combustion control system adjusts fuel supply and burner output to maintain stable temperatures throughout heating, melting and holding stages. After melting and slag removal procedures are completed, molten aluminum can be poured directly from the tapping outlet for subsequent production. Stable thermal conditions help maintain the required molten aluminum temperature before pouring.
Main Components
01.
The Oil Fired Aluminum Melting Furnace adopts heavy-duty welded steel structure for long-term stable operation. The inner chamber is lined with high-temperature refractory materials selected for aluminum melting applications, forming an independent melting area and molten aluminum holding section. The refractory structure reduces internal heat loss and adapts to long-term high-temperature operation with molten aluminum.
02.
Core configurations include an oil burner assembly, complete fuel supply and filtration system, and matched combustion air pipeline. The furnace is equipped with a heat-preservation furnace cover and reliable sealing structure to reduce heat leakage during operation.
03.
Supporting systems consist of temperature detection elements, dedicated combustion control cabinet and flame monitoring devices. Integrated safety protection functions cover flameout protection and over-temperature protection, supporting stable continuous smelting operation.
Features
Low fuel price, resulting in low production costs and high efficiency;
01
Uses imported burners, ensuring excellent fuel atomization, low fuel consumption, energy savings, reduced production costs, and improved economic efficiency. It also features automatic flame size adjustment and automatic ignition based on furnace temperature, providing favorable operating conditions and automated control;
02
The oil furnace uses an electro-hydraulic device to tilt the furnace body for automatic liquid discharge;
03
The oil furnace has a large aluminum melting capacity, capable of melting 3 tons of aluminum ingots per furnace, resulting in high production efficiency.
04
Applications
This Oil Fired Aluminum Melting Furnace is widely used in aluminum alloy foundries, aluminum die-casting workshops, recycled aluminum processing plants and aluminum profile manufacturing facilities. It is mainly used for melting and temperature holding of pure aluminum and aluminum alloys, as well as recycled aluminum processing.
