Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of gas nitriding furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized gas nitriding furnace made in China here from our factory. For price consultation, contact us.
Product Introduction

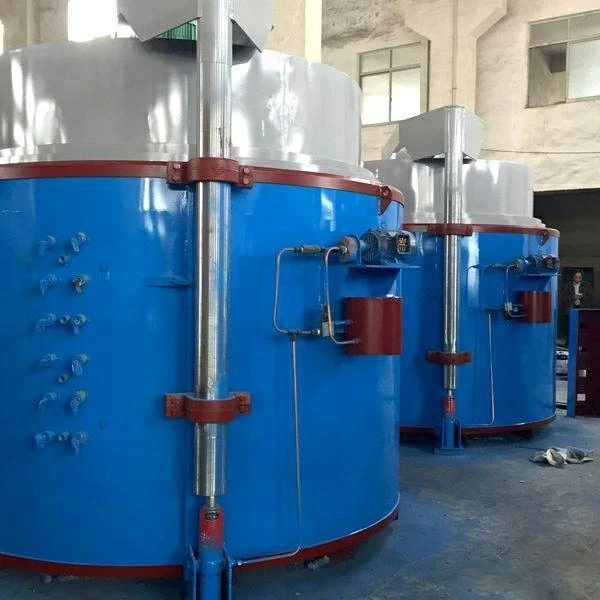

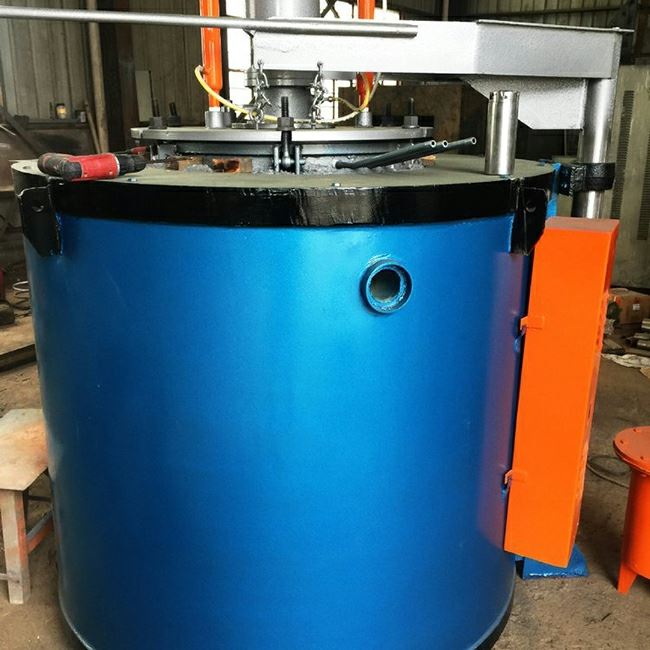

The Gas Nitriding Furnace is a sealed heat treatment unit for surface nitriding of precision metal components. It uses ammonia-based nitriding gas as the process atmosphere to form a uniform hard nitride layer on workpiece surfaces, improving the wear resistance, corrosion resistance and fatigue strength of steel parts.
Different from conventional open heating furnaces, the equipment adopts a fully sealed inner cavity to stabilize internal gas concentration and temperature during operation. It is suitable for nitriding mold steel and alloy steel components, supporting both small-batch trial runs and large-scale production.
Working Principle
Workpieces are placed inside the furnace chamber, and the furnace is fully sealed before operation. The chamber is heated steadily to the target nitriding temperature. After the Gas Nitriding Furnace reaches the required temperature, ammonia-based gas is introduced into the chamber. The gas flow and nitriding conditions are adjusted according to the selected process parameters.
Nitrogen diffuses into the surface of the workpiece during the treatment and forms the required nitrided layer. The system regulates temperature, gas flow and holding time throughout the process. Once diffusion and infiltration are finished, the furnace enters the programmed cooling stage to complete the full nitriding cycle.
Main Components
The gas nitriding furnace consists of a furnace body (composite furnace lining), electric heating components, a high-temperature centrifugal fan, a hot air guide tube, a furnace base, a furnace cover, a furnace cover lifting mechanism, a rapid cooling system, a furnace gas detection system (hydrogen analyzer), a waste gas combustion system, a water cooling system, and a furnace temperature/nitrogen potential (microcomputer) control system.
Features
01.
Precise Control and Guaranteed Product Quality: Precise temperature and atmosphere control is achieved through technologies related to circulating fans, air ducts, distribution of electric heating power and arrangement of electric heating components, advanced control systems, and control methods and processes, thereby ensuring product quality.
02.
Advanced Structure and Stable Operation: The advanced nature of the equipment is guaranteed by its overall design, manufacturing process, material quality, and the selection and quality of external components.
03.
Environmental Protection and Energy Saving: The advanced furnace structure design and composite furnace lining result in significant environmental protection and energy-saving effects.
Application
This gas nitriding furnace serves mold processing, automotive parts manufacturing, precision machinery and hydraulic component industries. It supports surface nitriding for die steel, alloy steel and selected stainless steel components.
Typical processed workpieces include molds, gears, shafts and hydraulic parts. The treatment improves surface hardness and wear resistance and can extend the service life of the treated components.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
