Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of vacuum nitriding furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized vacuum nitriding furnace made in China here from our factory. For price consultation, contact us.
Product Introduction

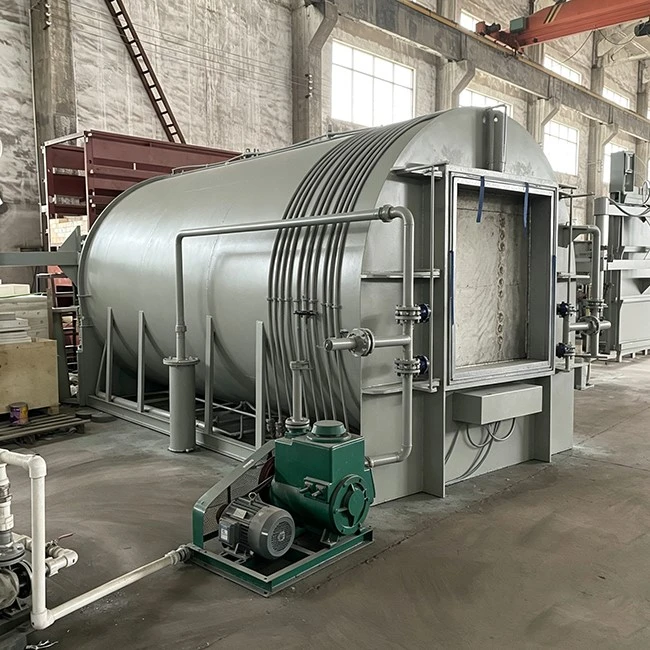

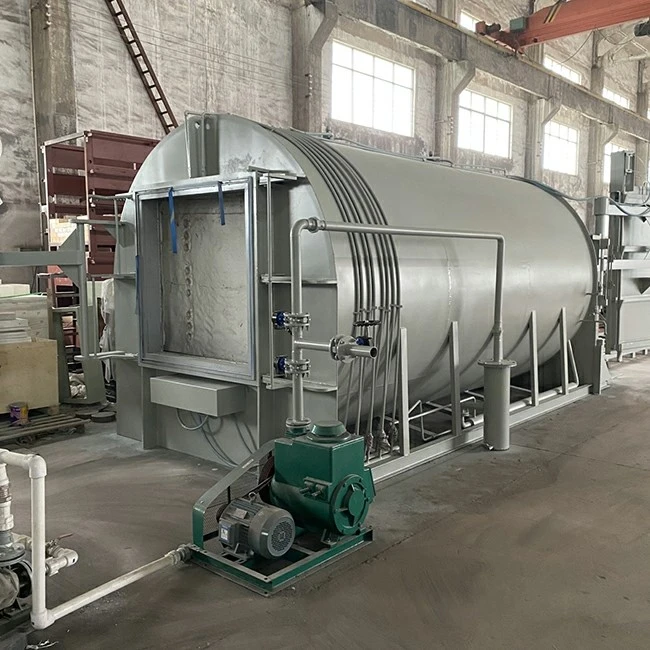

The vacuum nitriding furnace is an advanced nitriding equipment, mainly used for deep hole or blind hole nitriding heat treatment that cannot be completed by ordinary nitriding.The furnace first evacuates the chamber and then introduces the required nitriding gas under controlled conditions. This precise atmosphere control effectively limits surface oxidation and ensures stable treatment results.
We customize chamber size, working temperature range, vacuum configuration, gas supply system, heating power and cooling structure according to actual workpiece specifications and nitriding process standards. The equipment adapts well to batch processing of various industrial and precision mechanical components.
Working Principle
Workpieces are thoroughly cleaned and placed inside the furnace chamber, after which the furnace door is fully sealed. The vacuum system evacuates air and other residual gases from the chamber before the heating and nitriding stages begin. The heating system then raises the chamber and workpieces to the preset processing temperature.
Once stable temperature and vacuum conditions are achieved, the required nitriding gas is introduced at controlled flow rates and pressures. Under the specified temperature and atmosphere conditions, nitrogen diffuses into the surface of the steel and forms the required nitrided layer.
The control system continuously monitors temperature, vacuum level, gas flow and internal pressure throughout the whole process. After heating, nitriding and diffusion procedures are finished, workpieces are cooled under controlled atmosphere or vacuum conditions based on different process requirements.
Features
Vacuum operation before nitriding helps limit oxidation and surface defects on workpieces. The Vacuum Nitriding Furnace monitors temperature, vacuum level and gas flow in real time to maintain consistent processing conditions in the heating zone.
01
Programmable heating, nitriding, diffusion and cooling cycles support flexible process adjustment. The independent gas supply system delivers stable and repeatable atmosphere conditions for each batch of workpieces.
02
Different heating and cooling schemes can be configured to match diverse nitriding requirements. Process recipes can be stored for repeated production of different workpieces. The furnace supports data recording and real-time process monitoring to facilitate production tracking and quality control.
03
Chamber size, heating power and overall furnace configuration can be customized to fit different workpiece sizes and batch output demands.
04
Technical Specifications
Rated Power:
30-110kW
Rated Temperature:
650℃
Applications
This vacuum nitriding furnace is widely used for surface hardening treatment of mechanical steel parts. Typical workpieces include gears, shafts, molds, dies, bearings and hydraulic components that require improved surface hardness and wear resistance while retaining stable core mechanical performance.
It is commonly applied in automotive manufacturing, general machinery processing, tool and mold production, as well as precision engineering industries. The equipment supports standardized batch nitriding production, with customizable automatic control and process monitoring functions to meet stable mass production needs.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
