Jiangsu Fangwei Furnace Industry Co., Ltd. is one of the leading manufacturers and suppliers of medium temperature pit type resistance furnace in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale customized medium temperature pit type resistance furnace made in China here from our factory. For price consultation, contact us.
Product Introduction

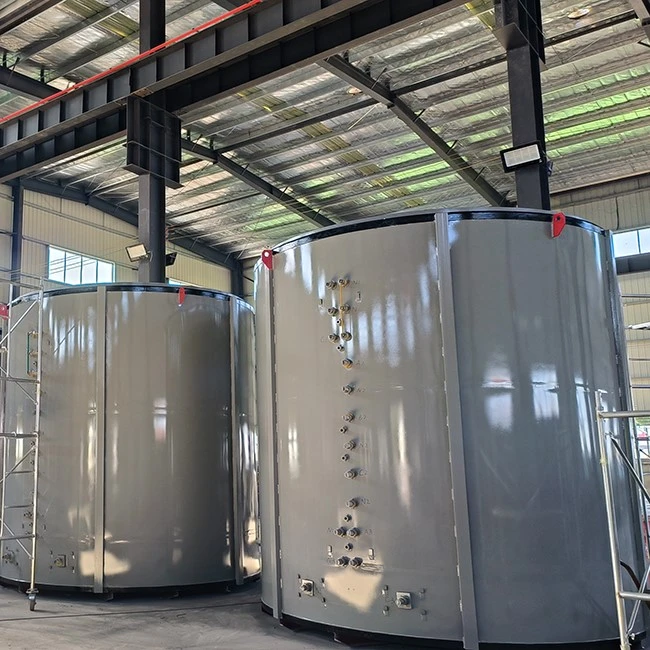

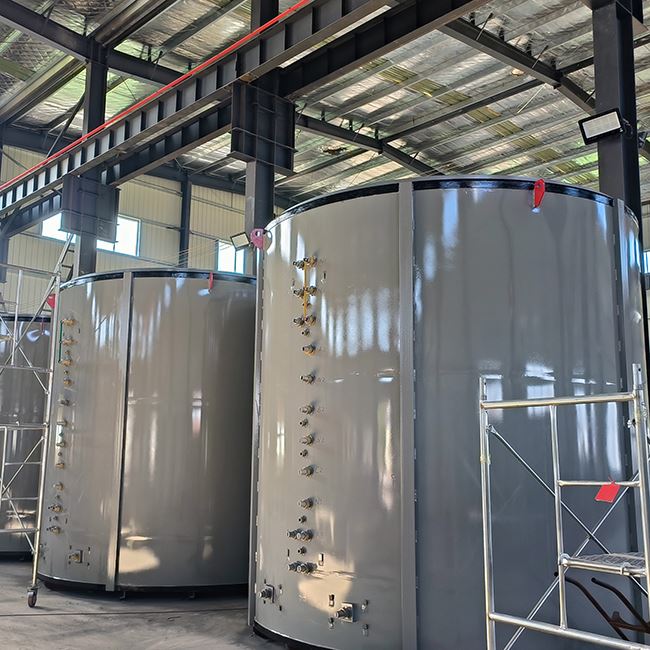

This medium temperature pit resistance furnace is batch-operated thermal equipment, designed for vertical heat treatment of elongated metal workpieces. Different from horizontal box furnaces, its vertical pit structure allows long shafts, rods, tubes, gears and ring parts to be installed vertically, avoiding placement and dimensional problems during heating. The equipment supports common medium-temperature processes, including annealing, tempering, stress relief and low-temperature aging.
Overall structure adopts welded steel shell and multi-layer insulation lining to adapt to repeated heating cycles. Heating elements are arranged around the inner chamber for full-area heat coverage. Multi-point temperature control can be configured according to furnace depth to meet uniform heating requirements for extra-long parts. Chamber size, heating power and control modes are adjustable based on actual workpiece specifications and on-site process standards.
Working Principle
Workpieces are lifted and vertically positioned inside the chamber by crane or custom loading tools. After the furnace cover is fully closed and sealed, internal heating elements start running according to preset programs. Heat transfers through radiation and natural convection to heat the whole workpiece section. Multiple thermocouples collect real-time temperature data at different depth positions, and the PID controller adjusts heating output dynamically to maintain stable heating and holding stages. All temperature and time parameters are set according to material characteristics and processing requirements to complete standard medium-temperature thermal cycles.
Main Components
The medium temperature pit resistance furnace is assembled with industrial standard structural parts, including heavy-duty steel furnace shell, high-temperature resistant insulation lining and perimeter-mounted resistance heating elements. It adopts lifting-type sealed furnace cover to facilitate vertical loading and unloading. The temperature measurement system consists of multi-point thermocouples for sectional temperature monitoring. Matching PID controller and electrical cabinet realize automatic program operation. Complete loading and supporting fixtures are configured according to workpiece shape and batch load.
Features
Vertical installation mode accommodates elongated workpieces that are not suitable for horizontal processing. Segmented temperature monitoring improves temperature consistency along the furnace depth. Thick insulation structure reduces heat emission during long working cycles. Programmable control supports multi-group parameter storage for different materials. Modular structure facilitates daily inspection and part replacement.
Application
This medium temperature pit resistance furnace is widely deployed in machinery manufacturing, forging processing, auto parts and heavy equipment industries. It handles annealing, tempering, stress relief and preheating for various long steel parts, tubular components and large structural workpieces, covering conventional batch production and customized thermal processing scenarios.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
