Product Introduction

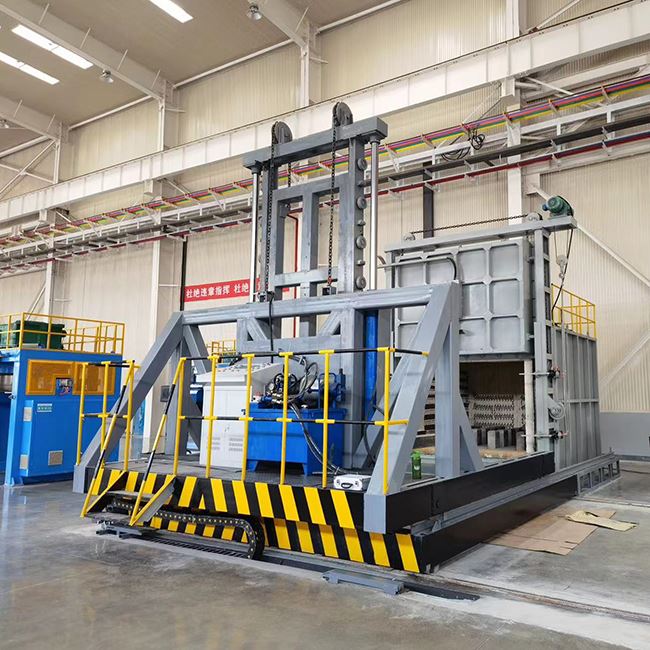

This Austempering Furnace is configured for austempering and isothermal heat treatment, processing alloy steel, tool steel and ductile iron workpieces commonly used in mechanical manufacturing. It adapts to parts that need balanced mechanical properties and stable dimensional performance after thermal processing. The equipment runs staged heating, constant temperature holding and fixed-temperature isothermal treatment, with all process parameters adjustable to match material types, workpiece section sizes and actual metallurgical processing standards. The furnace adopts welded steel structure and temperature-matched refractory insulation lining. On-site configurations including chamber size, heating power, control logic and loading mode can be adjusted according to customer workpiece conditions and production scale.
Features
The Austempering Furnace supports segmented parameter setting for austempering processes, adapting to different steel and ductile iron workpieces. Optimized insulation structure reduces heat loss during long-cycle heating. The control system enables repeated calling of mature process parameters for batch production. Customizable loading fixtures and transfer schemes fit various workpiece shapes and batch loads. Modular arrangement of electrical, heating and mechanical parts facilitates daily inspection, disassembly and replacement.
Technical Parameters
1. Mesh belt type muffle-free isothermal quenching furnace
|
Model: |
RWD-180-9 |
|
Working dimensions of the furnace chamber (length × width × height): |
5600 × 700 × 120 mm |
|
Mesh belt dimensions: |
L5600 × W600 × H100 mm |
| Productivity: | Isothermal quenching, spring clamp 250 kg/h, heavy parts 350 kg/h |
| Mesh belt conveying speed (steplessly adjustable): | 40-200 mm/min |
|
Maximum working temperature: |
950℃ |
|
Heating power: |
Microcomputer automatic or manual adjustable 0-180KW, auxiliary power 26KW |
|
External dimensions: |
L7600 × W1620 × H2400 mm |
|
Weight: |
12000 kg |
2. Mesh belt type nitrate salt isothermal quenching furnace
|
Model: |
XWD-180-5 |
|
External dimensions: |
6810×1870×3120mm |
|
Nitrate capacity: |
approximately 9m³ |
|
Heating power: |
180KW |
|
Auxiliary power: |
12.5KW |
|
Nitrate temperature control: |
0-500℃ |
|
Working temperature: |
325℃ |
| Composition of isothermal nitrate furnace salt bath (mass fraction): | NaNO2 45%;Sodium nitrite KNO3 55% |
| Potassium nitrate Melting point: | 137℃ |
| Operating temperature: | 150-500℃ |
| Warning: | Never exceed 500℃, otherwise combustion and explosion may occur! |
|
Lifting speed: |
0-100mm/min |
|
Isothermal working stroke of workpiece: |
5600mm |
|
Weight: |
8800kg |
Electrical Control Cabinet
- Mesh Belt Type Muffle-Free Isothermal Quenching Furnace: Electrical
- Control Method: Four Microcomputer Program Temperature Control Units
- Heating Method: Four-Zone Heating, Independent Temperature Control for Each Zone
- Dimensions (Length × Width × Height): 600 × 700 × 1800 mm × 2 units
- Weight: 300 kg (two units)
- Mesh Belt Type Nitrate Salt Isothermal Quenching Furnace: Electrical
- Control Method: One Position Automatic Temperature Control Cabinet
- Heating Method: 24 Stainless Steel High-Temperature Electric Heating Tubes in a Δ Shape
- Dimensions (Length × Width × Height): 600 × 700 × 1800 mm
- Weight: 150 kg
Applications
Austempering Furnaces are mainly suitable for industries such as bearings, standard parts, automobiles, motorcycles, machine tool chains, weaponry, cutting tools, textiles, and daily hardware. They can perform continuous quenching, isothermal tempering, and soft nitriding on small, medium, and large mechanical parts under a protective atmosphere. The quenching brightness and isothermal tempering quality are superior to those of similar conventional equipment.
Product Detail
Electrical Control Cabinet
Electrical Control Cabinet
Heating Element
Heating Element
